Product form

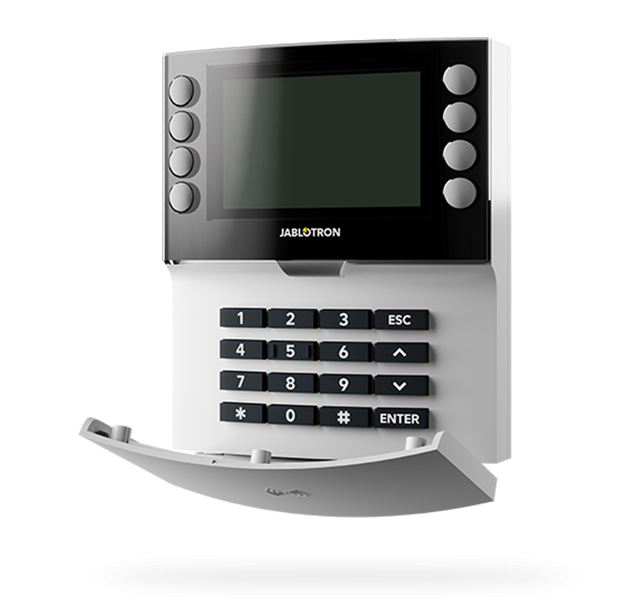

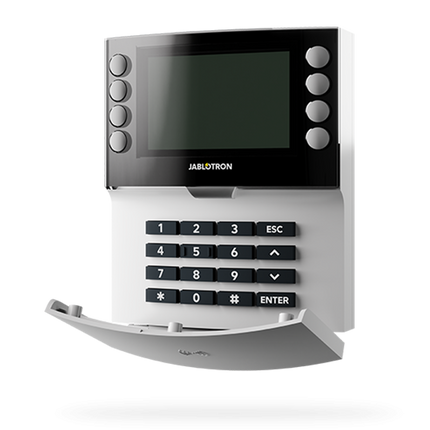

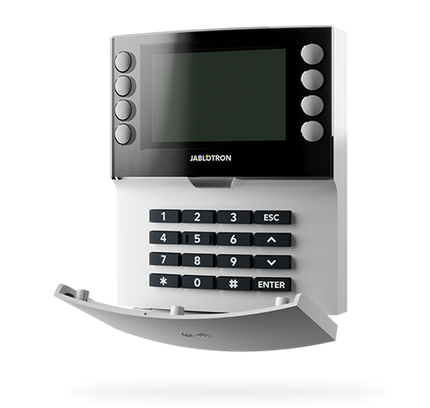

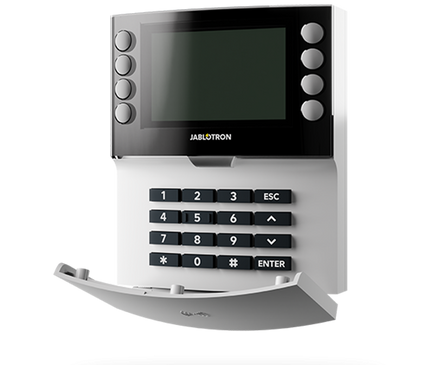

JA-155E Wireless keypad with display and RFID reader WHITE

JA-155E Wireless keyboard with display and RFID reader WHITE The keypad is a wireless component of the JABLOTRON system.It serves... Read more

Delivery time 1 - 2 working days

€290,12€239,77 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Gratis verzending vanaf €99,-
    • Kopen op rekening
    • Gratis retourneren binnen 14 dagen

    check Associated products for JA-155E Wireless keypad with display and RFID reader WHITE

    Size chart

    JA-155E Wireless keyboard with display and RFID reader WHITE

    The keypad is a wireless component of the JABLOTRON system.It serves to control and display the system status Indication.It is equipped with four segments whose description is displayed on the LCD screen.The device should be installed by a trained technician with a valid certificate issued by an authorised distributor.The keypad is compatible with the following PBXs JA-103K and JA-107K.

    Specificaties:

    Power supply 4 x alkaline batteries, type: AA (LR6) 1.5 V
    Please note: Batteries are not included.
    Typical lifetime of batteries 1-2 Years
    LowBatt state <4.5 V
    Quiescent current consumption (6 V) 245 μA
    Maximum current consumption (6 V) 115 mA
    External power supply 12 V +/-1 V typ. 45 mA, max. 100 mA
    Communication band 868.1 MHz, JABLOTRON protocol
    Maximum radio-frequency power (ERP) <25 mW
    Communication range approx 200 m (open area)
    RFID frequency 125 kHz
    Dimensions 110 x 136 x 33 mm
    Weight (w/o batteries) 285 g
    Classification Security grade 2/Environmental class II (according to EN 50131-1)
    Environment indoor general
    Operating temperature range -10 °C to +40 °C
    Average operating humidity 75% RH, w/o condensation
    Certification body Trezor Test s.r.o. (no. 3025)
    In compliance with ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6,
    Operating conditions according to general authorization ERC REC 70-03
    Recommended screw 4 x ø 3.5 x 40 mm (countersunk head)

    Read more
