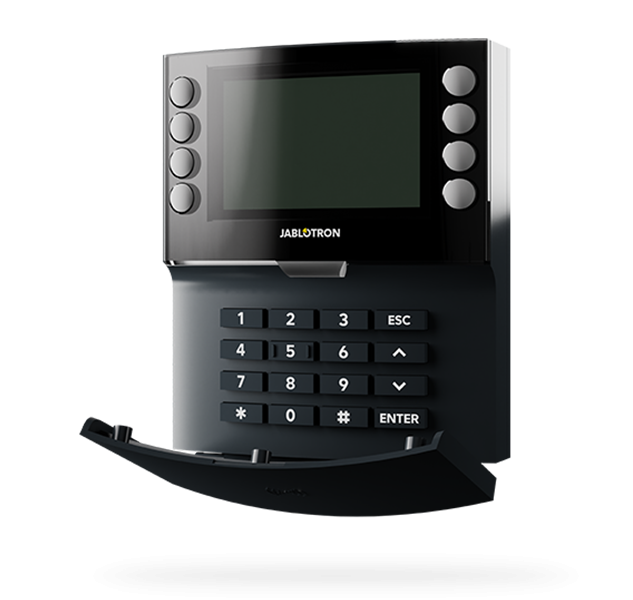

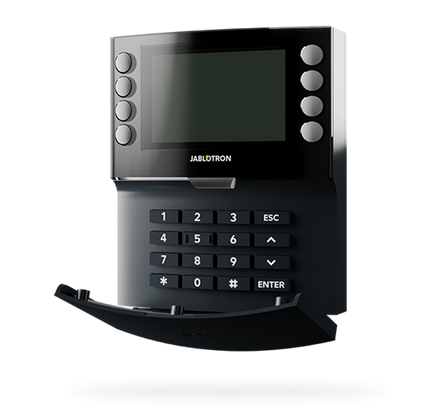

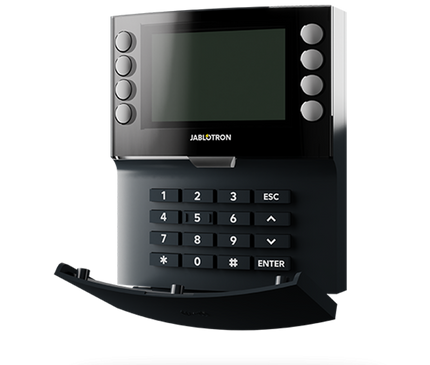

JA-155E-AN, Wireless keypad with four-segment keypad, LCD and RFID reader

The keypad is a wireless component of the JABLOTRON system. It serves to control and display system status indication. It is equipped with four segments; their descriptions are displayed on the LCD. The device must be installed by a trained technician with a valid certificate issued by an authorised distributor. The keyboard is compatible with the following control panels JA-102K, JA-103K, JA-107K and JA-152KR.

Specifications:

Voedingsbron

• 4 x alkaline batteries, type: AA (LR6) 1.5 V
• Warning batteries are not included.
• Typical battery life 1-2 years
• LowBatt condition <4.5 V
• Nominal current draw (6 V) 245 μA
• Maximum current consumption (6 V) 115 mA
• External power source 12 V +/-1 V typ. 45 mA, max. 100 mA
• Maximum cable length 3 m
• Communication band 868.1 MHz, JABLOTRON protocol
• Maximum radio frequency power (ERP) <25 mW
• Communication range approx. 200 m (open area)
• RFID frequency 125 kHz
• Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)

Afmetingen

• 110 x 136 x 33 mm
• Weight (without batteries)
• 285 g

Classificatie

• Protection class 2/Environmental class II (according to EN 50131-1)
• General environment

Algemeen

• Operating temperature range
• -10 °C to +40 °C

Average operating humidity

• 75% RH, non-condensing
• Certification body
• Trezor Test s.r.o. (No 3025)

In accordance with

• ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6
• Conditions of use according to general authorisation
• ERC REC 70-03
