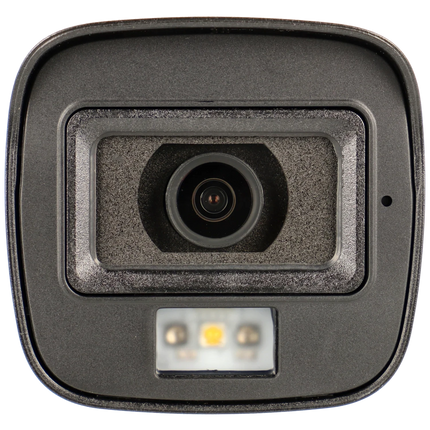

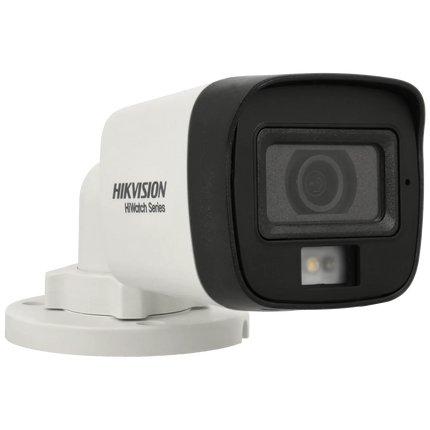

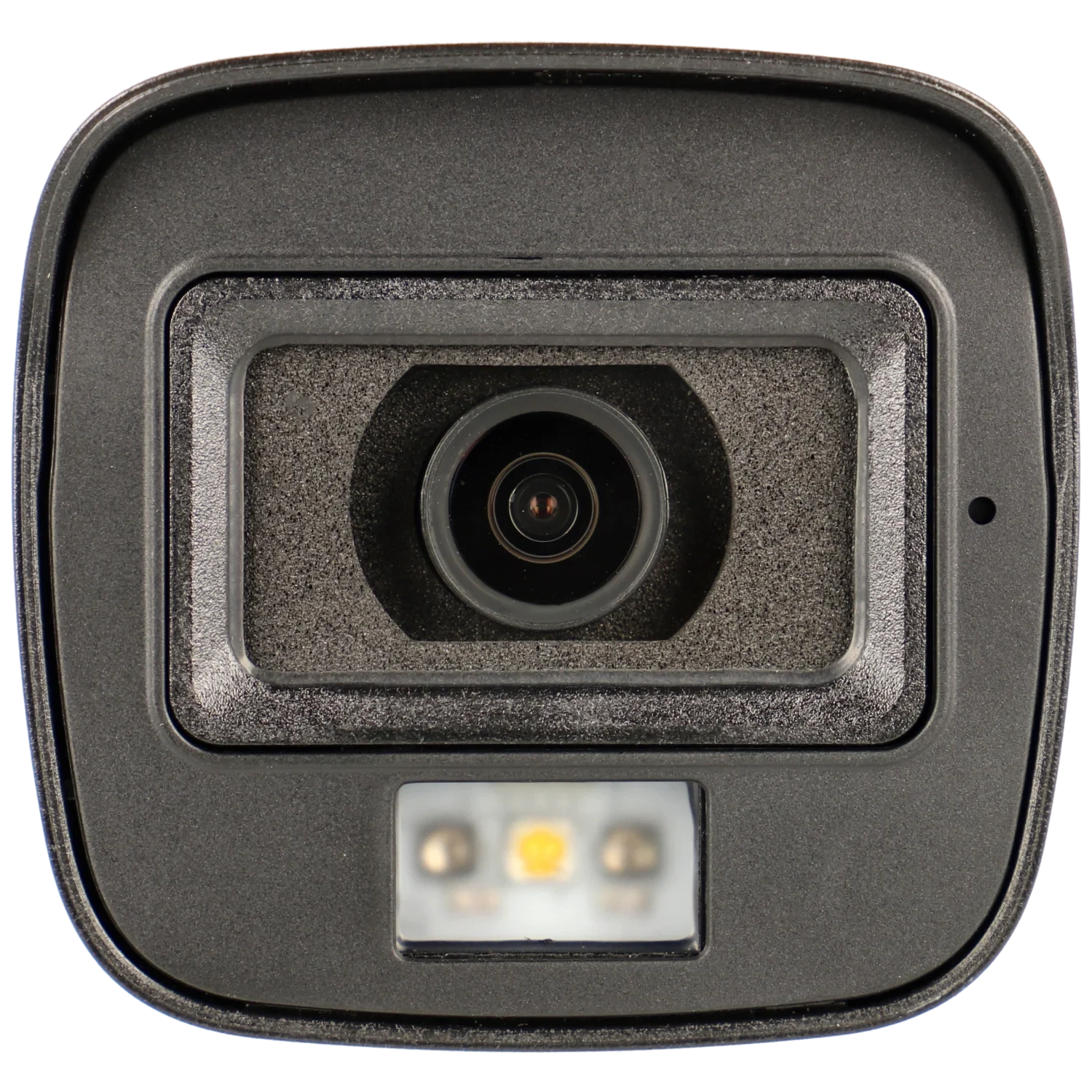

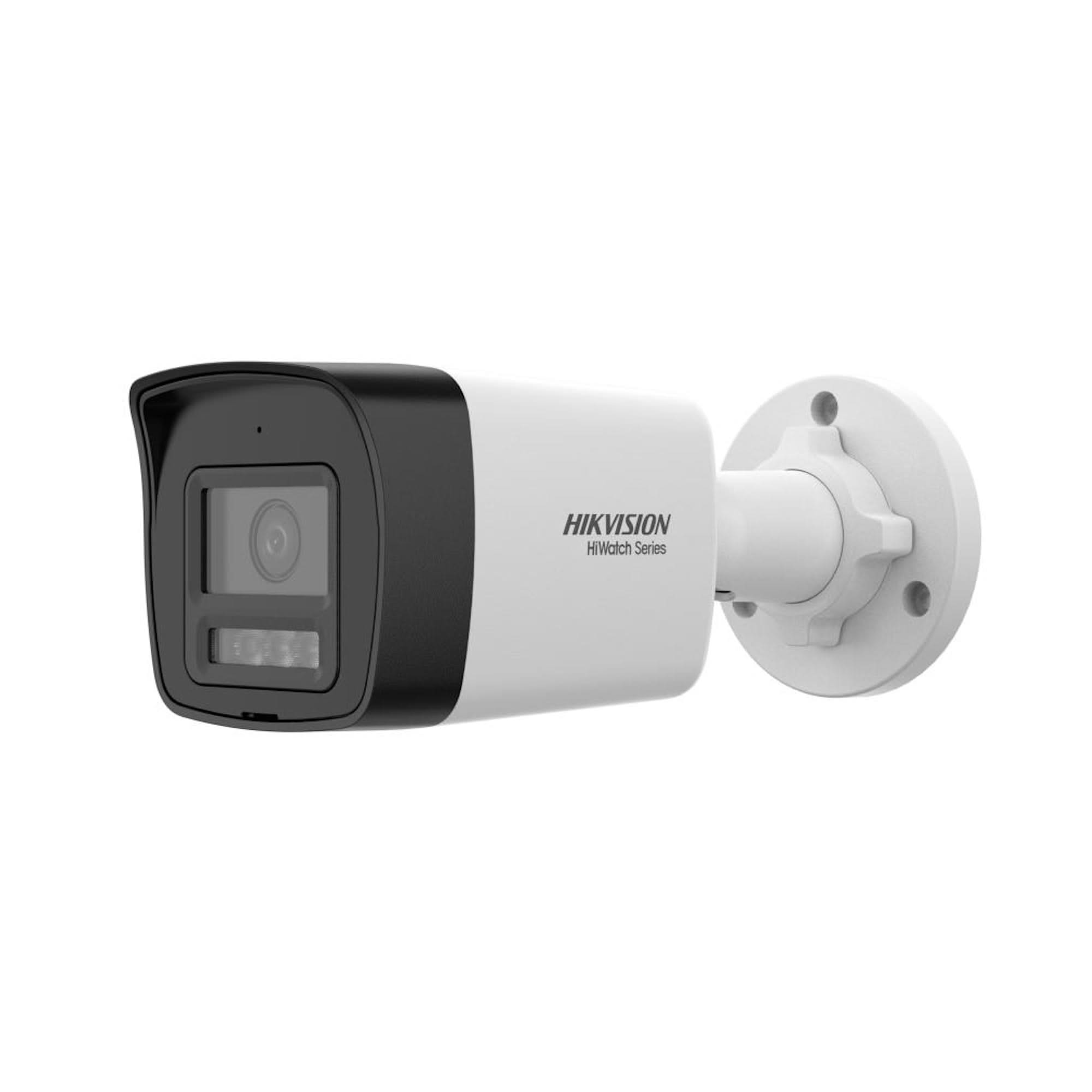

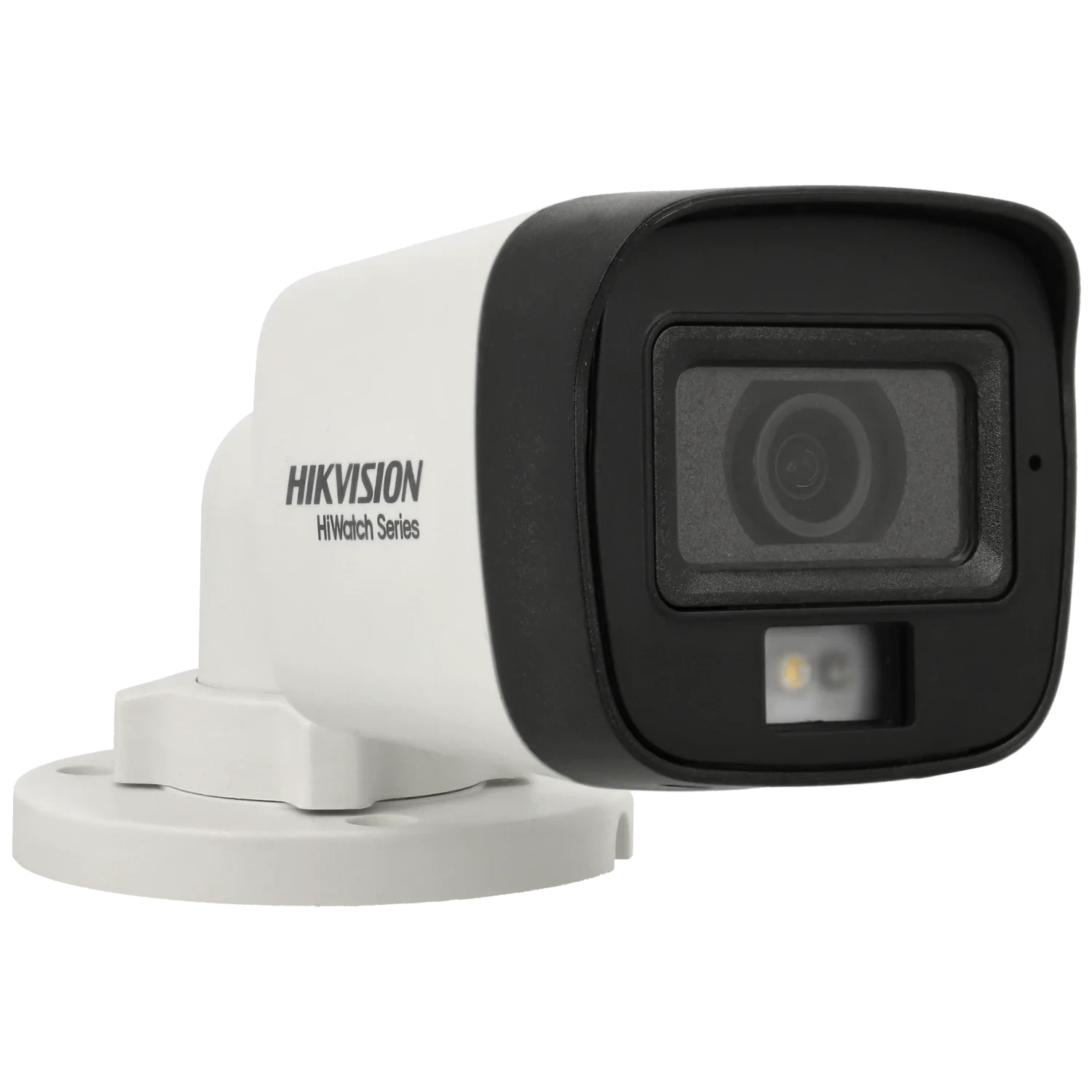

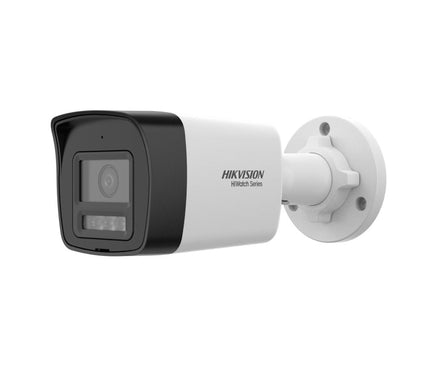

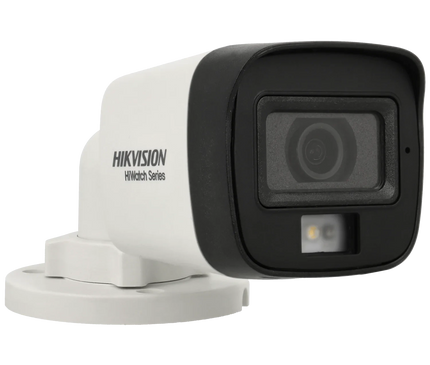

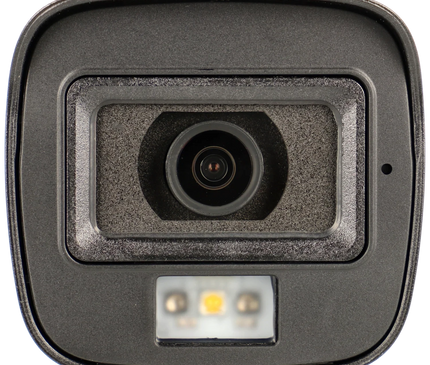

The Hikvision® HiWatch™ HWI-B140HA-LUC IP camera offers exceptional performance with 4 Mpx resolution and H.265+ compression , optimising bandwidth and storage. It features Smart Hybrid Light , with dual IR illumination and white light up to 20 metres, for visibility in all conditions. The fixed 2.8 mm optics provide a wide viewing angle, while digital WDR enhances the image in high-contrast environments.

Thanks to advanced person detection, this camera reduces false alarms and improves security. It also includes a microphone for capturing audio. Thanks to its IP67-certified housing, it is water- and dust-resistant, ideal for outdoor use. It is powered via PoE or 12V DC , offering installation flexibility.

Compatible with ONVIF , Hik-Connect and iVMS-4200 , enables efficient remote management and access. Ideal for advanced video surveillance systems requiring high image quality and reliability in any environment.

Specifications:

Camera

• Imaging sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Exposure (colour): 0.01 Lux @ (F2.2, AGC ON), Black/White: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Day & Night: IR-cut filter
• Angle adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens

• Lens Type: Fixed focus, 2.8 and
• Focal Length & Field of View (FOV):
  • 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°
• Lensmontage: M12
• Aperture Type: Fixed
• Diafragma: F2.2
• Depth of Field:
  • 2.8 mm: 0.9 m to ∞

DORI

• 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

Verlichting

• Type of Additional Illumination: IR, White Light
• Range of Additional Illumination:
  • IR: up to 20 m
  • White Light: up to 15 m
• Smart Supplementary Lighting: yes
• IR Wavelength: 850 nm

Video

• Hoofdstream:
  • 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub-stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Hoofdstream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video bitrate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bitrate Control: CBR, VBR
.
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz/16 kHz
• Environmental Noise Filtering: Yes
• Audio Compression: G.711ulaw/AAC-LC
• Audio Bitrate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Netwerk

• Protocols:TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
• API: ONVIF (Profile S, Profile T), ISAPI, SDK
• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live Playback: up to 6 channels
• User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Web browser: Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11

Afbeelding

• Image settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
• Wide Dynamic Range (WDR): Digital WDR
• SNR: ≥ 52 dB
• Privacy Mask: 1 programmable polygon privacy mask
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Yes, 1 built-in microphone

Evenementen

• Basis Evenement: Motion detection (supports alarm triggering by specified target type (human)), exception
• Linkage: Send e-mail, notify surveillance centre, trigger capture

Algemeen

• Current: 12 VDC ± 25%, 0.42 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
• Materiaal: Kunststof
• Dimensions: 138.8 mm × 60.9 mm × 57.9 mm (5.5" × 2.4" × 2.3")
• Packaging dimensions: 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
• Weight: Approximately 175 g (0.4 lb.)
• Weight with Packaging: Approximately 250 g (0.55 lb.)
• Storage conditions: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensation)
.
• Start-up and Working Conditions: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensation)
.
• Taal: Engels
