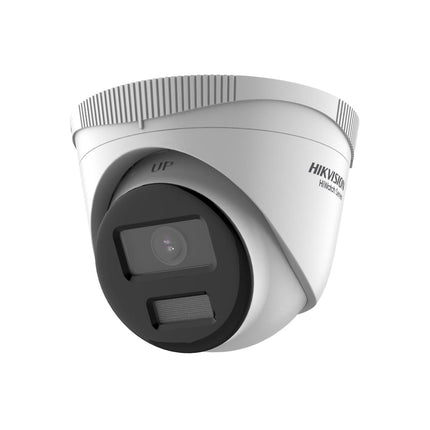

The Hikvision HWI-T280HA-LU is an advanced 8 MP fixed turret network camera designed for superior security imaging. With a 1/2.7" Progressive Scan CMOS sensor, this camera delivers a maximum resolution of 3840 × 2160 pixels, resulting in clear and detailed recordings.

• Lens and viewing angle: Equipped with a 2.8 mm lens, the camera offers a horizontal viewing angle of 113°, allowing effective monitoring of a wide area.

• Light sensitivity: Thanks to the minimum exposure requirement of 0.01 Lux and Smart Dual-Light technology, the camera can capture clear images even in low to no ambient light.

• Wide Dynamic Range (WDR): With a WDR of 120 dB, the camera can handle challenging lighting conditions, such as strong backlight situations, and still produce clear images.

• Built-in microphone: The integrated microphone enables audio recording, contributing to a more complete surveillance solution.

• Weatherproof: With an IP67 rating, the camera is dust- and waterproof, making it suitable for both indoor and outdoor installations.

The Hikvision HWI-T280HA-LU is a reliable choice for those looking for high-quality image and versatile features in a security camera.

Specifications:

Camera

• Imaging sensor: 1/2.7" Progressive Scan CMOS
• Maximum resolution: 3840 × 2160
• Minimum illumination:
  • Colour: 0.01 Lux @ (F2.0, AGC ON)
  • Black/white: 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotation: 0° to 360°

Lens

• Type of lens: Fixed focal length (2.8 mm and 4 mm optional)
• Focal length & field of view (FOV):
  • 2.8 mm: Horizontal 113°, vertical 62°, diagonal 134°
  • 4 mm: Horizontal 90°, vertical 49°, diagonal 108°
• Lensbevestiging: M12
• Iris-type: Vast
• Diafragma: F2.0

Verlichting

• Type of supplementary light: IR, white light
• Range of supplementary light: up to 30 m
• Smart supplementary light: Yes
• IR wavelength: 850 nm

Video

• Main stream (50 Hz):
  • 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Main stream (60 Hz):
  • 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream (50 Hz):
  • 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
• Sub-stream (60 Hz):
  • 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video compression:
  • Hoofdstream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video bit rate: 32 Kbps to 16 Mbps
• H.264-profielen: Baseline, Main, High
• H.265-profiel: Main
• Bit rate control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audiotype: Mono
• Environmental noise filtering: Yes
• Audio sampling rate: 8 kHz / 16 kHz
• Audio compression:
  • G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio bit rate:
  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 32 to 160 Kbps (MP2L2)
  • 16 to 64 Kbps (AAC-LC)

Netwerk

• Beveiliging:
  • Password protection
  • Complicated passwords
  • Watermerk
  • HTTP/WSSE authentication
  • MAC address authentication
• Simultaneous live viewing: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
• Supported protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• Users/Hosts: Up to 32 users (3 levels: administrator, operator, user)
• Clients: iVMS-4200, Hik-Connect
• Web browser support:
  • Live view with plug-in: IE 10, IE 11
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Beeld

• Wide Dynamic Range (WDR): 120 dB
• Signal-to-Noise Ratio (SNR): ≥ 52 dB
• Day/Night switching: Day, Night, Automatic, Schedule
• Beeldverbetering: BLC, HLC, 3D DNR
• Beeldinstellingen:
  • Rotatiemodus
  • Saturation, brightness, contrast, sharpness, gain, white balance
  • Adjustable via client software or web browser
• Privacy masking: 4 programmable polygons

Interface

• Ethernet interface: 1 RJ45 10 M/100 M self-adjusting port
• Built-in microphone: Yes

Evenementen

• Basic Events:
  • Motion detection (with detection of specific targets such as people and vehicles)
  • Videobewustzijn
  • Alarm on exceptions
• Actions on events:
  • Upload to FTP
  • E-mailmelding
  • Notifications to monitoring centre
  • Beeldopname

Algemeen

• Voeding:
  • 12 VDC ± 25%, 0.41 A, max. 5 W
  • PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal and plastic
• Dimensions: Ø112 mm × 82 mm (Ø4.41" × 3.23")
• Packaging dimensions: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approximately 360 g (0.8 lb)
• Weight with packaging: Approximately 551 g (1.2 lb)
• Opslagcondities: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
.
• Start-up and operating temperature: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
• Taal: Engels
