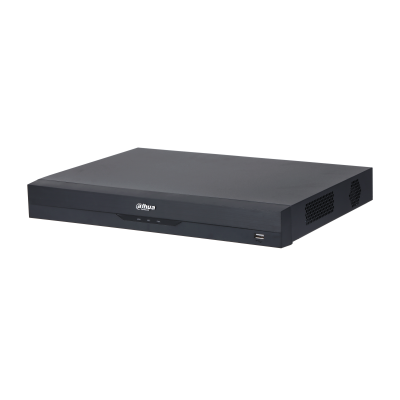

Dahua XVR is the HD-CVI recorder from Dahua. These recorders are multifunctional and support TVI,AHD, Analogue and IP cameras in addition to HD-CVI. The 4K and 4KL models are thereby capable of resolutions up to 8MP.

WizSense stands for the advanced detection form based on AI algorithm that Dahua uses in this series of products. By applying these algorithms, the XVR is able to distinguish between people and vehicles. All other objects that do not match the AI-based algorithm, for example animals, shadows or trees, are filtered out.

Thereby, it is also possible to use the XVR for other AI-based function such as face recognition, for example. However, an XVR has a maximum capacity for intelligent functions. Therefore, always check the specifications carefully before applying these functions. The AI functionality.

Specifications:

• Systeem

  • Main processor: Industrial processor
  • Operating system: Embedded Linux
  • Operating interface: Web; Local GUI

• Quick Pick

  • QuickPick 2.0 AI by Recorder (Number of channels): 2 channels

• Perimeterbescherming

  • Perimeter AI performance by Recorder (Number of channels):
    • Advanced mode: 2 channels, 10 IVS lines per channel
    • General mode: 8 channels, 10 IVS rules per channel

• Gezichtsherkenning

  • Face features: 6 features
  • Performance Face Recognition by Recorder (Number of channels): 2 channels (up to 12 face images/s per channel)

• Privacybescherming

  • Performance Privacy Protection by Recorder (Number of channels): 1 channel

• Gezichtsherkenning

  • Face database capacity: Up to 10 face databases with 20,000 images
  • Performance Face Recognition by Recorder (Number of channels): 2 channels

• SMD Plus

  • SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reduces false alarms caused by leaves, rain and change of light conditions
  • SMD Plus by Camera: 16 channels

• AI Video Quality Analysis

  • AI Video Quality Analysis by Recorder: 8 channels: Supports detecting brightness levels, colour tone, blur, overexposure, contrast levels, black and white

• Scene Changing

  • Scene Changing by Recorder: 1 channel

• Irregular Black Block Masking

  • Irregular Black Block Masking by Recorder: 1 channel

• EPTZ

  • EPTZ by Recorder: 1 channel

• Audio and Video

  • Analogue camera input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detection
  • Camerainvoer:
    • CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps
    • TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
    • AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
  • IP camera input: Up to 16 channels of IPC access; 8 IP channels standard + 8 channels (analogue channels are converted to IP channels)
  • Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps, outgoing bandwidth: 128 Mbps

• Encoding Capaciteit

  • Encoding Enhancement disabled:
    • Mainstream: 1st channel 4K@(1 fps-15 fps), other 4K@(1 fps-7 fps); 1st channel 6 MP@(1 fps-20 fps), other 6 MP@(1 fps-10 fps); etc.
  • Encoding Enhancement enabled:
    • Mainstream: 1st channel 4K@(1 fps-15 fps), other 4K@(1 fps-7 fps); 1st channel 6 MP@(1 fps-20 fps), other 6 MP@(1 fps-10 fps); etc.

• Dual-stream: Ja

• Video bitrate: 32 kbps-6144 kbps

• Audio sampling: 8 kHz, 16 bit

• Audio bitrate: 64 kbps

• Video output: 1 HDMI, 1 VGA

• Multi-schermweergave:

  • When IP extension mode is not enabled: 1/4/8/9
  • When IP extension mode enabled: 1/4/8/9/16

• Access to third-party camera: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

• Comprimeerstandaard

  • Video-compressie: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Audio compression: G.711a; G.711u; PCM

• Netwerk

  • Network protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; FTP; DDNS; SNMP; Alarm server; P2P; Auto-registration; IP search
  • Mobile access: iOS; Android
  • Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser: Chrome; IE; Safari; Edge; Firefox

• Recording and playback

  • Opnamemodus: General; Alarm; Motion detection; Intelligent; POS
  • Opnameweergave: 1/4/9
  • Backup method: USB device and network
  • Playback mode: Instant playback; General playback; Event playback; Tag playback; Smart playback

• Opslag

  • Schijfgroep: Ja

• Alarm

  • General alarms: Motion detection; Local alarms; Alarm box; HDCVI alarm; Camera external alarm; Network alarm; PIR alarm
  • Anomalie-alarm: Error (no disk, disk error, low space, low space quota; network connection disconnected; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent alarm: Face recognition; Face detection; Perimeter protection; SMD Plus

• Poorten

  • Audio input: 4-channel RCA; 8-channel BNC (Coaxial audio)
  • Audio output: 1-channel RCA
  • Tweeweg-audio: Ja
  • Alarm input: 8 channels
  • Alarm output: 3 channels
  • Disk interface: 2 SATA ports. Each disk can hold a maximum of 16 TB. This limit varies depending on the ambient temperature.
  • RS-485: 1
  • USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
  • HDMI: 1
  • VGA: 1
  • Network port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)

• Algemeen

  • Power supply: 12 VDC, 4 A
  • Energy consumption: <10 W (without HDD)
  • Net weight: 1.60 kg (3.53 lb)
  • Gross weight: 3.00 kg (6.62 lb)
  • Product dimensions: 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)
  • Packaging dimensions: 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.56" × 14.41") (W × D × H)

• Werktemperatuur: -10 °C to +55 °C (+14 °F to +131 °F)

• Opslagt Temperatuur: -20 °C to +60 °C (-4 °F to +140 °F)

  .
