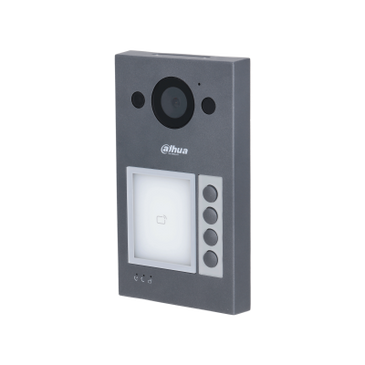

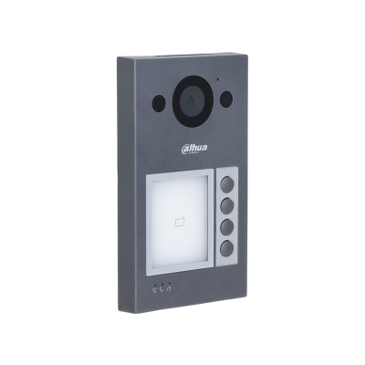

The VTO3312Q-P is an intercom entry panel with the maximum of 4 bell pushers, the included button plates make it easy to configure the entry panel into a 1, 2 or 4 button variant. The outdoor unit has an excellent day/night camera with a horizontal opening angle of 125°. The surface-mount housing is made of vandal-proof aluminium IP65 / IK08, a rain cover is also supplied with the outdoor unit as standard. It is possible to create up to 3000 users to control the door by means of the card reader module.

The outdoor unit features a card reader suitable for Mifare. It is possible to add up to 3000 users.
This outdoor/indoor station possesses an SD card slot. The SD card can be used to record conversations

Specifications:

• Systeem

  • Main processor:Embedded processor
  • Type of button: Mechanical
  • Interoperability: ONVIF; CGI
  • Network protocol: RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

• Basis

  • Camera: 1/2.8" CMOS 2-MP HD camera
  • Field of view: H: 125°; V: 65°; D: 139°
  • WDR (Wide Dynamic Range): 120 dB
  • Noise reduction: 3D NR; 2D NR
  • Video compression: H.264; H.265
  • Video resolution:
    • Main stream: 720p, WVGA, D1, and CIF
    • Substream: 1080p, WVGA, D1, QVGA, and CIF
  • Video frame rate:
    • PAL: 25 fps
    • NTSC: 30 fps
  • Video bitrate: 768 kbps-8 Mbps
  • Light compensation: Auto IR
  • Dag/Nacht: Auto (ICR)/Colour/Black and White; Colour/Black and White
  .

• Audio

  • Audio compression: G.711a; G.711u; PCM
  • Audio-ingang: 1
  • Audio-uitgang: Built-in speaker
  • Audiomodus: Tweeweg-audio
  • Audio enhancement: Echo-cancelling/digital noise reduction; Echo-cancelling; Digital noise reduction
  • Audio bitrate: 16 kHz, 16 bit

• Functies

  • Communication mode: Fully digital
  • Unlock mode: Card; app; indoor monitor
  • Kaarttype: IC card
  .
  • Automatic snapshot: Yes (microSD card inserted in indoor monitor or door station)
  • Leave video: Yes (microSD card inserted in VTH/VTO is required)
  • Webconfiguratie: Ja
  • Storage: Micro SD card (max. 256GB)

• Prestaties

  • Reading distance from card: 0 cm-3.5 cm (0"-1,38")
  • Publish map locally: Yes

• Behuizing

  • Materiaal: Aluminium alloy

• Capaciteit

  • Kaartcapaciteit: 3000

• Poorten

  • RS-485 port: 1
  • Alarminvoer: 1
  • Alarmuitgang: 1
  • Stroomuitgang: 1
  • Uitgangsdrukknop: 1
  • Deurstatusdetectie: 1
  • Deurslotbesturing: 1
  • Network port: 1 × RJ-45/two-wire port, 10/100 Mbps self-adaptive

• Alarm

  • Sabotagealarm: Ja

• Algemeen

  • Exterior colour: Grey
  • Power supply: 48 VDC, 1 A; Standard PoE; Dahua two-wire switch (maximum supply distance 50 m/164.04 ft)
  • Power adapter: Optional
  • Installation: Surface mount
  • Certifications: CE; FCC
  • Accessoires: Alarm power cable included, rain cover
  .

• Afmetingen product

  • 188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18")

• Bescherming

  • IP-bescherming: IP65
  • IK-bescherming: IK08

• Werktemperatuur

  • -40 °C to +60 °C (-40 °F to +140 °F)

• Werkvochtigheid

  • 10%-90% (RH), non-condensing

• Werkhoogte

  • 0 m-3,000 m (0 ft-9,842.51 ft)

• Energieverbruik

  • ≤ 4 W (standby), ≤ 8 W (working)

• Brutogewicht

  • 0.78 kg (1.72 lb)

• Netto gewicht

  • 0.57 kg (1.26 lb)
