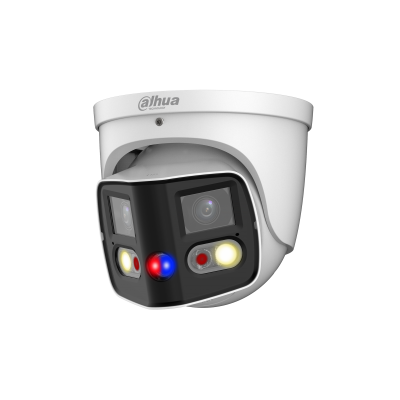

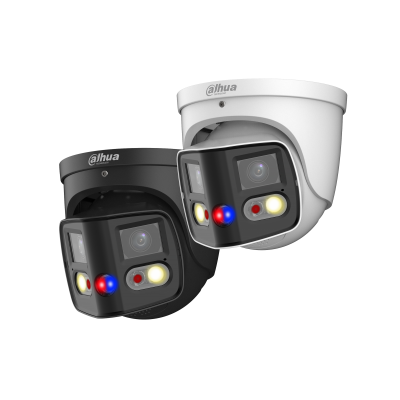

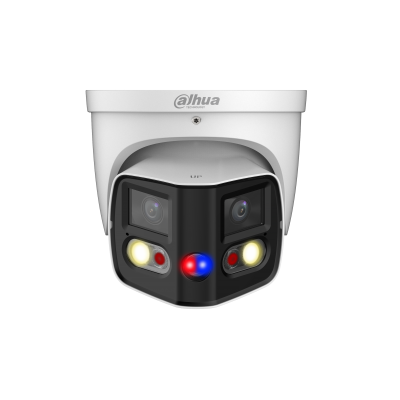

PDW3849P-A180-AS-PV 8MP TiOC Eyeball 180° dual lens
The Dahua TiOC cameras are 3-in-1 cameras, suitable for most ranging situations. Besides razor-sharp colour images, the cameras also feature AI functions in the dark for unprecedented detection and deterrence of portentous burglars. The TiOC 2.0 versions offer additional features such as Smart Dual LED, Voicecatcher and even better image quality.
Panorama cameras from Dahua are designed to be highly flexible and made suitable for multi-directional or wide-angle surveillance. By using multiple or fish-eye lenses, the camera creates a wide overview image with lots of detail. The products are easy to install and support a variety of functions
TiOC 2.0 represents a generation 3 in 1 camera that integrates 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution. TiOC can accurately identify potential risks and effectively warn intruders, effectively protecting property security.
TiOC provides accurate alerting by accurately targeting people and vehicles, while filtering out non-target objects (such as animals, leaves and car headlights).
Specificaties:
| Aantal beeldsensoren: | 2 |
| Beeldsensor: | Dual 1/2.7" CMOS |
| Resolutie: | 4096 x 1800 |
| Aantal pixels: | 8MP |
| Minimum illumination strength (in colour): | 0.005 lux |
| Minimum illumination strength (LED on (black/white)): | 0.0005 lux |
| Verlichting: | IR, White LED |
| LED afstand: | IR up to 25m, White LED up to 20m |
| LED On/Off (Day/Night): | Auto/Manual |
| Aantal LED(s): | 4 LED |
| Sluitersnelheid: | 1/3 s-1/100,000 s |
| Ruisonderdrukking: | 3DNR |
| Lens type: | Fixed lens |
| Iris: | Fixed Iris |
| Brandpuntsafstand: | 2.8 mm |
| Maximale opening: | F1.4 |
| Horizontale openingshoek: | 180° |
| Verticale openingshoek: | 86° |
| Focusbediening: | No |
| Stream mogelijkheid: | 3 streams |
| Frames per second (Main stream): | 20fps @4096 × 1860 |
| 2de stream: | 20fps @1200 × 530 |
| 3de stream: | 20fps @1920 × 860 |
| Bitrate: | H.264: 9 kbps-16384 kbps, H.265: 9 kbps-16384 kbps |
| Dag/Nacht: | Colour, Black/White |
| Lichtcompensatie: | BLC, HLC, SSA, WDR(120dB) |
| Bewegingsdetectie: | Aan/Uit |
| | |
| Slimme Functies: | AI Perimeter Protection |
| | AI Motion detection |
| Smart LED: | Auto/Manual |
| Defog: | No |
| Privacy-maskering: | No |
| Ingebouwde microfoon: | Yes |
| Audio ingang: | Yes |
| Audio Uitgang: | Yes |
| Speaker: | Yes |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Storage option SD card: | Yes |
| Maximum Storage Capacity SD card: | 256GB |
| Alarm: | Yes |
| Number of channels in: | 1x Max 5 mA 3 V-5 VDC |
| Number of channels off: | 1x Max 300 mA 12 VDC |
| inclusief voeding: | No |
| Voeding: | 12V DC, PoE +(Type IEEE 802.3at), E-PoE |
| Max Verbruik: | Base: 3.9W (12VDC); 4.95W (PoE) Max: 8.7W (12VDC); 10.85W (PoE) |
| Werktemperatuur: | -40°C ~ +60°C |
| Waterdichtheid: | IP67 |
| Materiaal | Plastic/Metal |
| Diameter | Ø122mm |
| Hoogte | 135.2mm |
| Gewicht: | 0.99 |
