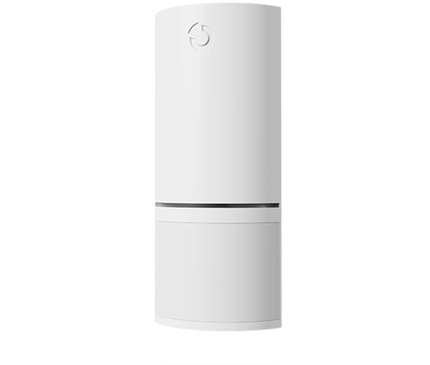

    JA-162PW | Wireless Designline | Dual MW PIR |


    This product is a wireless device of the system JABLOTRON 100+. This detector is designed to detect human body movements in buildings. High immunity against false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a classic PIR detector, but if the PIR detects movement in a monitored area, the MW part is activated and confirms the previous PIR activation.

    Specificaties:

    Power supply 2x lithium battery, type: CR123A (3 V/1500 mAh)
    Note: Batteries are not included.
    Typical battery life 4 years
    LowBatt status < 2.7V
    Resting current consumption 65 μA
    Maximum current consumption 50mA
    Communication band 868.1 MHz, JABLOTRON protocol
    Maximum radio frequency power (ERP) 25 mW
    Communication range about 300 m (open terrain)
    Recommended installation height 2.2 - 2.5 m above floor level
    Detection angle/detection coverage PIR 90°/12 metres
    Detection angle/detection coverage MW 80°/12 metres
    Operational frequency MW 24.125 GHz
    Maximum radio frequency power (ERP) 30mW
    Dimensies 63x150x40mm
    Weight (without batteries) 125 grams
    Classificatie Security class 2/Environmental class II (in accordance with EN 50131-1)
    Operating temperature range -10 °C to +40 °C
    Average operating humidity 75% RH, without condensation
    Certifying body Trezor Test sro (no 3025)
    In accordance with ETSI EN 300 220-1,-2, ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4, EN 50131-5-3, EN 50131-6
    Operating conditions according to general authorisation ERC-REC 70-03
