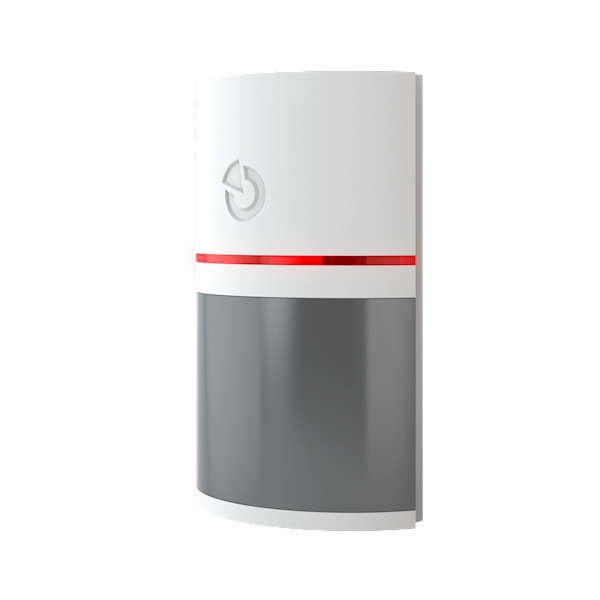

JA-152PG, Pro DesignLine Wireless PIR with white-light protection

Jablotron JA-152PG, Pro DesignLine Wireless PIR with white-light protection The product is a wireless system device for the Midway Pro... Read more

Delivery time 1-2 business days

€150,37€124,27 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Gratis verzending vanaf €99,-
    • Kopen op rekening
    • Gratis retourneren binnen 14 dagen

    check Associated products for JA-152PG, Pro DesignLine Wireless PIR with white-light protection

    Size chart

    Jablotron JA-152PG, Pro DesignLine Wireless PIR with white-light protection

    The product is a wireless system device for the Midway Pro and Essex Pro. This detector is designed to detect human body movements in buildings. The guaranteed detection coverage is 90° / 12 m. The optional grey lens has a resistance to white light that is significantly higher than the values prescribed in the standard. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

    The resistance to white light helps reduce false alarms caused by illumination from windows, lightning or reflective objects.

    The detector provides standard resistance to white light, significantly exceeding the values prescribed by the standard (up to 10000 lux).

    The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors in all installation versions. In addition to standard positioning in a corner of a room, it can be installed on a wall surface using an aesthetic mounting box JA-196PL-S, where the detector is partially recessed and forms an elegant whole with the wall. For special applications such as ceiling mounting or angled detection angle, the JA-191PL hinge holder can be used.

    The detector is equipped with impulse activation.

    The detector can be used to control programmable PG outputs.

    Compatible with F-Link 2.0.0 and higher
    Voedingsbron 1x lithium battery, CR123A (3 V / 1500 mAh)
    Typical service life 4 years (in Smartwatch mode)
    Communication frequency 868.1 MHz
    Communication range about 300 m (free terrain)
    Recommended installation height 2.2 - 2.5 m above floor level
    Detection angle / detection range 90° / 12 m
    Sizes: 62 x 110 x 40 mm
    Classificatie Safety level 2/environmental class II, in accordance with EN 50131-1 ed. 2+A1+A2, EN 50131-2-2
    Environment in accordance with EN 50131-1 II. indoor, general
    Operational temperature range -10 °C to +40 °C
    It also meets the requirements of EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
