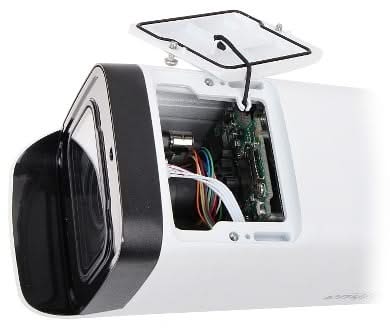

IPC-HFW2841T-ZS Bullet Zoom Lens 2.7-13.5mm Wizsense 8MP/4K PoE
With the improved H.265 encoding technology, the Dahua Lite series camera features efficient compression technology that saves bandwidth and storage space. This security camera uses Starlight technology. This technology provides a colorful image in low-light situations. Lite series cameras have backlight compensation, SD card slot and a housing that meets the IP67 and IK10 standard
> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 60 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/POE power support
> IP67 protection
Specifications:
|
Camera
|
|
Image Sensor
|
1/2.7” 8Megapixel progressive CMOS
|
|
Effective Pixels
|
3840 (H) × 2160 (V)
|
|
ROM
|
128MB
|
|
RAM
|
256MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.008 Lux@F1.5
|
|
IR Distance
|
60m (196.85ft)
|
|
IR On/Off Control
|
Auto/Manual
|
|
IR LEDs Number
|
4
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Motorized vari-focal
|
|
MountType
|
φ14
|
|
Focal Length
|
2.7mm–13.5mm
|
|
Max. Aperture
|
F1.5
|
|
Field of View
|
Pan: 113°–31°
Tilt: 58°–17°
Diagonal: 138°–36°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
0.8 m–0.8 m (2.62 ft–2.62 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
W
|
85.3 m
(279.9ft)
|
34.1 m
(111.9ft)
|
17 m
(55.8ft)
|
8.5 m
(27.9ft)
|
|
T
|
280 m
(918.6ft)
|
112 m
(367.5ft)
|
56 m
(183.7ft)
|
28 m
(91.9ft)
|
|
Smart Event
|
|
General IVS Analytics
|
Trip wire; intrusion
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG
|
|
Smart Codec
|
Yes
|
|
Video Frame Rate
|
Mainstream:
3840 × 2160 (1 fps–15 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
3840×2160 (3840×2160); 3072×2048 (3072×2048); 3072×1728 (3072×1728); 2592×1944 (2592×1944); 2688×1520 (2688×1520); 3M (2048×1536); 2304 × 1296 (2304 × 1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Smart IR
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
Protocol
|
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
|
|
Interoperability
|
ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20
|
|
Edge Storage
|
Cloud; FTP; Micro SD Card (support max. 256 GB); NAS
|
|
Browser
|
IE
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
iOS; Android
|
|
Certification
|
|
Certifications
|
CE LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
<9.9W
|
|
Environment
|
|
Operating Conditions
|
–30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH
|
|
Storage Temperature
|
–40°C to +60°C (–40°F to +140°F)
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
Φ244.1 mm × 90.4 mm (Φ9.61" × 3.26")
|
|
NetWeight
|
0.86kg (1.90lb)
|
|
Gross Weight
|
1.10kg (2.43lb)
|
