Product form

DS-KD8003-IME1/S (B) stainless steel outdoor station bell push button

The Hikvision DS-KD8003-IME1/S(B) RVS is a KD8 Series modular door station designed to combine video intercom functionality with access control.... Read more

Delivery time 1-2 business days

€185,88€153,62 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Gratis verzending vanaf €99,-
    • Kopen op rekening
    • Gratis retourneren binnen 14 dagen

    check Associated products for DS-KD8003-IME1/S (B) stainless steel outdoor station bell push button

    Size chart

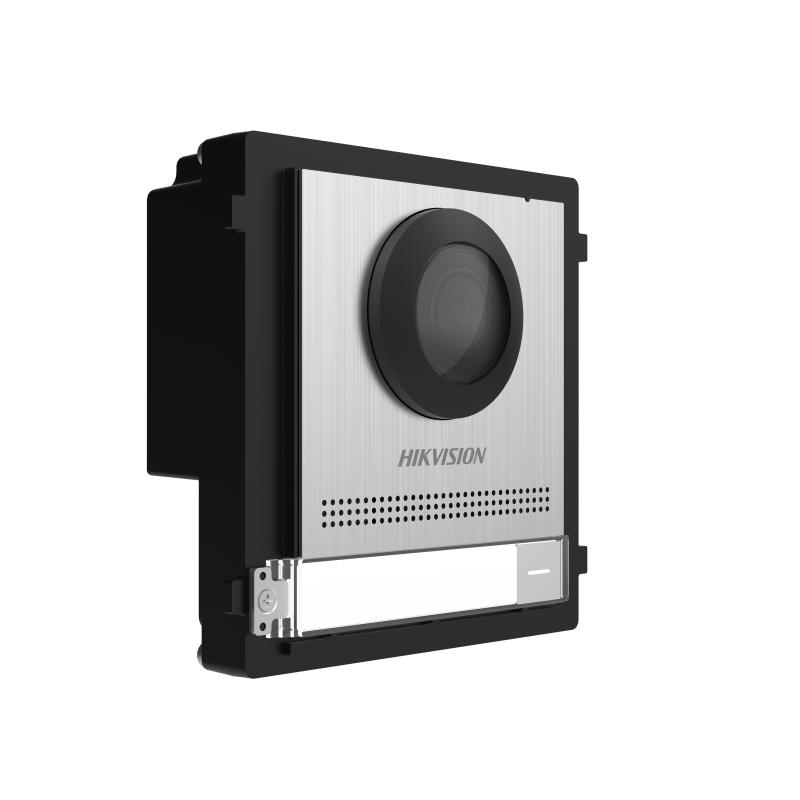

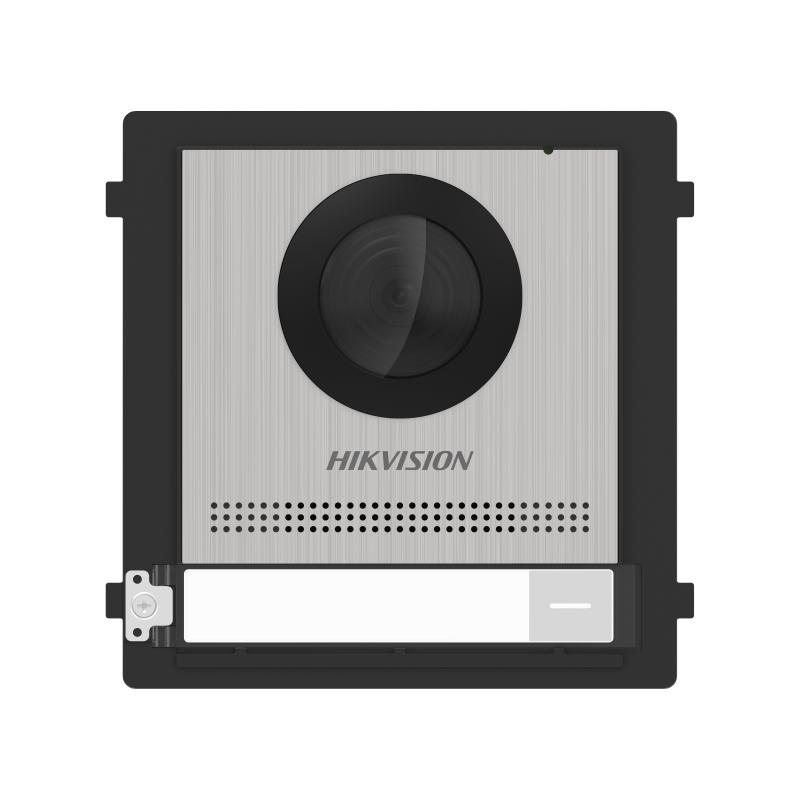

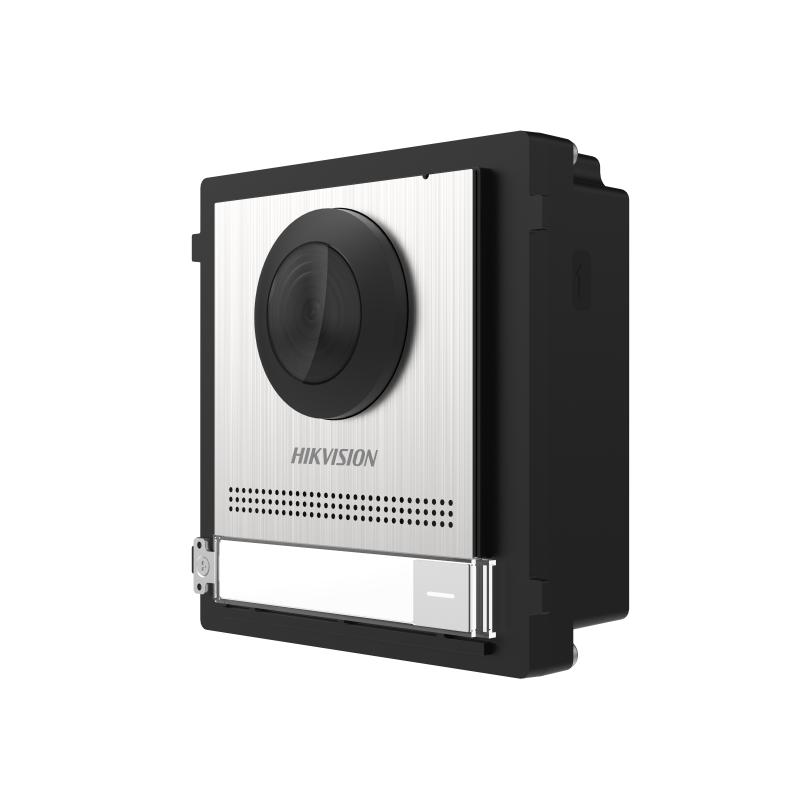

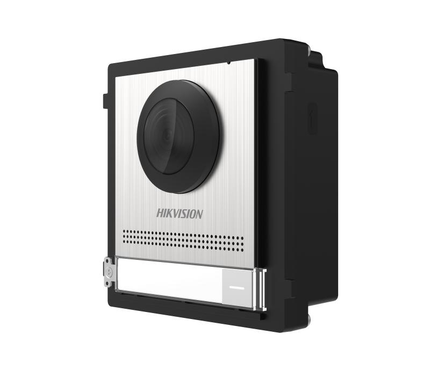

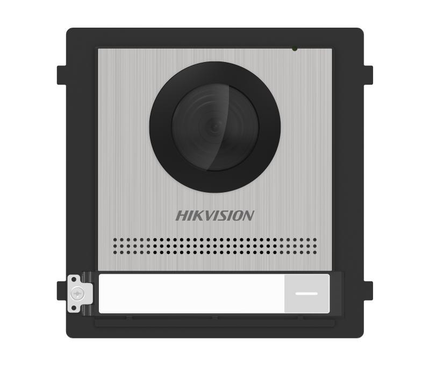

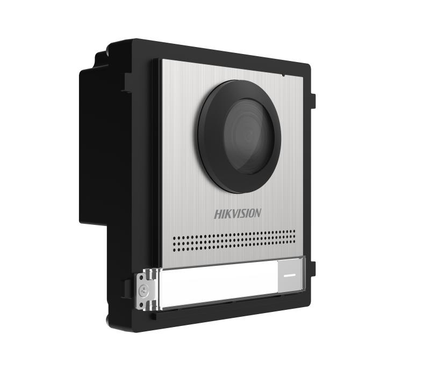

    The Hikvision DS-KD8003-IME1/S(B) RVS is a KD8 Series modular door station designed to combine video intercom functionality with access control. This model features a 2 MP fisheye camera with additional infrared (IR) illumination, improving visibility in low-light conditions. The wide field of view, with a horizontal angle of 146° and a vertical angle of 82°, provides wide coverage of the area in front of the door.

    The door station runs on an embedded Linux operating system and features 32 MB ROM and 256 MB RAM, powered by an embedded processor. This configuration underlines its ability to meet the requirements of modern security and communication systems. The video compression standard used is H.264, which is effective in reducing file size and maintaining video quality.

    For audio, the DS-KD8003-IME1/S(B) RVS features a built-in omnidirectional microphone and a speaker. The audio compression standards are G.711 U and G.711 A, with a bit rate of 64 Kbps. It also includes noise reduction and echo cancellation features, ensuring clear audio communication.
    The device has a user capacity of 2000 and supports up to 6000 cards, making it suitable for environments with a large number of users. It can be linked to 500 indoor stations and supports up to 16 sub-door stations.
    The DS-KD8003-IME1(B) is designed for both flush and surface mounting and offers installation flexibility. It has an IP65 protection level, ensuring durability in outdoor environments. The operating temperature range is from -40° C to 60° C and can operate at humidity levels of 10% to 95%. Power options include 12 VDC and PoE (IEEE 802.3af) and power consumption is less than 5 W.

    Specificaties:

    • Operating system - Linux
    • ROM - 32 MB
    • RAM memory - 256MB
    • Processor - Built-in high-performance processor

      Video parameters
    • Lens - 2 MP HD camera
    • Resolution - 2 MP
    • Field of view - Horizontal: 146°, Vertical: 82°
    • Dynamic range (WDR) - Support
    • Extra light - Low illumination, IR supplement illumination
    • Videocompressiestandaard - H.264

      Audioparameters
    • Audio input - 1 built-in omnidirectional microphone
    • Audio compression standard - G.711 U/G.711 A
    • Audio output - 1 built-in speaker
    • Bit rate audio compression - 64 Kbps
    • Audio quality - Noise reduction and echo cancellation
    • Volumeregeling - Verstelbaar

      Capaciteit
    • User capacity - 2000
    • Card capacity - 6000
    • Capacity paired indoor station - 500
    • Sub-door station capacity - 16

      Network parameters
    • Network protocol - TCP/IP, RTSP

      Device interfaces
    • Alarm input - 4 (standard 2 output buttons and 2 door contacts)
    • Network interface - 1 RJ-45, 10/100 Mbps self-adaptive
    • SABOTAGE - 1
    • Exit button - 2 (2 for lock operation)
    • RS-485 - 1 (1 for Hikvision's submodule communication)
    • Lock control - 2 relays, Max. 30 V DC, 2 A

      General
    • Button - 1
    • Installation - Surface mount, flush mount
    • Weight -
      - Net weight: 380 g
      - Gross weight: 541 g
    • Protection level - IP65
    • Operating temperature - -40 °C to 60 °C (-40 °F to 140 °F)
    • Power supply - 12 VDC, 500 mA, IEEE 802.3af, PoE
    • Application environment - Outdoor
    • Power consumption - ≤ 5 W
    • Language -
      - English, French, Portuguese, Brazilian Portuguese, Spanish,
      - Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic,
      - Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian,
      - Serbian, Greek, Slovak

    Read more
