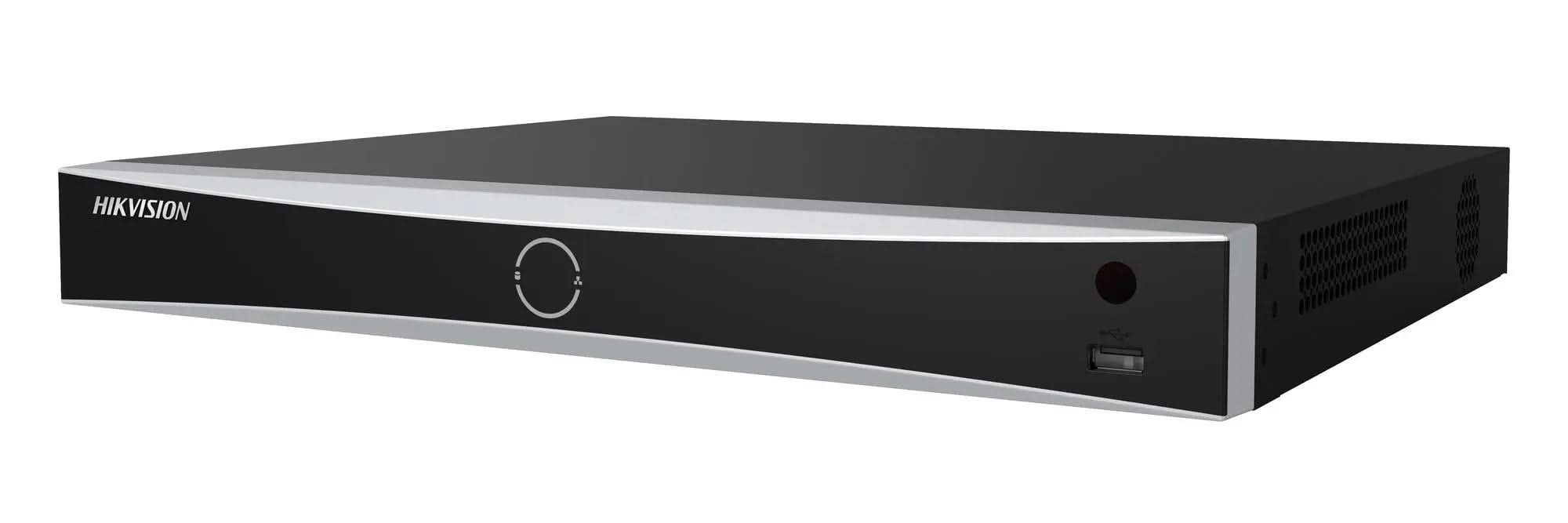

DS-7616NXI-I2/S, 16-channel 4K Network Video Recorder, Without PoE, Acusense
This network video recorder (NVR) supports up to 16 channels and is housed in a compact 1U chassis, making it suitable for space-saving installation in various environments. The NVR can record and playback 4K video, providing high-resolution imaging for security and surveillance purposes.
The device features AcuSense technology, which enhances the ability to accurately detect and classify people and vehicles in video footage, reducing false alarms and improving security efficiency. With a built-in deep learning algorithm, this NVR provides advanced analytics such as line crossing and intrusion detection, which are more accurate than conventional methods.
It supports H.265+ video compression technology, which significantly reduces bandwidth and storage requirements while maintaining high-quality video output. The device has HDMI and VGA outputs, allowing simultaneous video output to multiple screens.
It also features two SATA interfaces for increased storage capacity, supporting up to 10TB per drive. Network connectivity is enabled by a 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface, for robust and flexible network integration.
Specifications:
- Model DS-7608NXI-I2/S DS-7616NXI-I2/S
- Face recognition¹
- Face detection and analysis
- Face photo comparison, human face capture, face photo search
- Face photo library
- Up to 16 face photo libraries, with up to 10,000 face photos in total (each photo ≤ 512 KB, total capacity ≤ 150 MB)
- Face photo comparison: 4-channel face photo comparison alarm
- Performance of face detection and analysis
- 1-channel human face recognition (HD network camera, up to 8 MP, H.264/H.265)
- Motion detection 2.0¹
- Human/vehicle analysis: 8-channel, 16-channel
- Perimeter security¹
- Human/vehicle analysis
- Up to 4-channels, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
- Up to 12 lines in total
- Video and Audio
- IP video input: 8-channels, 16-channels
- Up to 12 MP resolution
- *: 32 MP and 24 MP are only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming bandwidth: 80 Mbps, 160 Mbps
- outgoing bandwidth: 256 Mbps
- HDMI-uitgang:
- 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA output: 1-channel, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video output mode: HDMI/VGA independent output
- CVBS output: 1-channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio output: 1-channel, RCA (Linear, 1 KΩ)
- Wo-way audio input: 1-channel, RCA (2.0 Vp-p, 1 KΩ)
- Decodering
- Decoderingsformaat: H.265+/H.265/H.264+/H.264/MPEG4
- Recording resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- *: 32 MP and 24 MP are only available for channel 1 when ultra HD resolution mode is enabled.
- Synchronous playback: 8-channel, 16-channel
- Capacity: 16-channels@1080p (30 fps)
- Dual stream recording: Supported
- Stream type: Video, Video & Audio
- Audio compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
- Netwerk
- Afstandsverbindingen: 128
- Networking protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Utility interface: 2 SATA interfaces with hot-plug support
- Capacity: Up to 10 TB capacity per drive
- Alarm in/out: 4/1
- USB-interface:
- Front panel: 1 × USB 2.0
- Back panel: 1 × USB 3.0
- Algemeen
- Power supply: 100 to 240 VAC, 50 to 60 Hz
- Power consumption (without HDD): ≤ 15 W
- Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
. - Operating temperature: 10% to 90%
- Casing: 1U housing
- Dimensions (W × D × H): 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
- Weight (without HDD): ≤ 1.6 kg (3.5 lb)
