Product form

DS-3E0310HP-E, 10 ports, 1x High PoE, 7x PoE

Hikvision DS-3E0310HP-E, 10 port, 1x High PoE, 7x PoE DS-3E0310HP-E switch is a Layer 2 Long-range PoE switch. On the... Read more

Delivery time 1-2 business days

€185,88€153,62 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Gratis verzending vanaf €99,-
    • Kopen op rekening
    • Gratis retourneren binnen 14 dagen

    check Associated products for DS-3E0310HP-E, 10 ports, 1x High PoE, 7x PoE

    Size chart

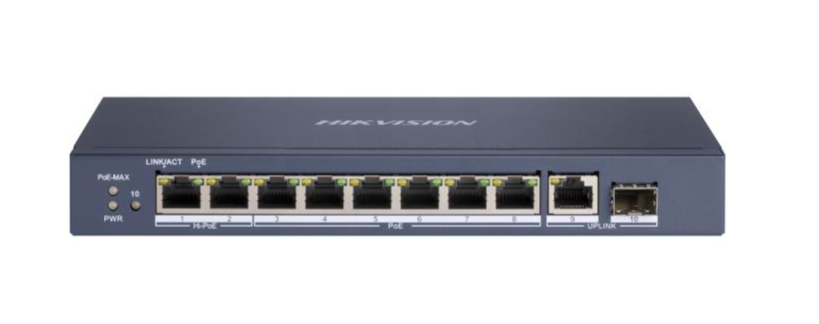

    Hikvision DS-3E0310HP-E, 10 port, 1x High PoE, 7x PoE

    DS-3E0310HP-E switch is a Layer 2 Long-range PoE switch. On the switch, 1 piece 10/100 Mbps Hi-PoE port is available and 7 pieces 10/100 Mbps PoE ports.
    In addition, 2 pieces 10/100 / 1000Mbps RJ45 ports are available. The switches offer advanced Hi-PoE / PoE technology and support extension mode with a range of 250m.
    Meanwhile, the 2 × 10/100 / 1000MbpsRJ45 uplink ports guarantee applications of multiple networking solutions


    - 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports and 2 × 10/100/1000 Mbps RJ45 ports.
    - IEEE 802.3at / af / bt standard for Hi-PoE port (max 60 W port power).
    - IEEE 802.3at / af standard for PoE ports.
    - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z standard.
    - 6 KV overvoltage protection for PoE ports.
    - AF / AT camera can reach up to 250 m in expansion mode. Hi-PoE camera can reach up to 150 m.
    - PoE power management.
    - Dual uplink network design.- Switching between storage and forwarding.
    - Solid, high-strength metal housing.
    - Reliable fanless design.
    Network parameters
    Port number: 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports
    Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
    Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
    Forwarding mode: Store-and-forward switching
    Working mode: Standard mode (default); Extend mode
    Ports for long-distance transmission: Ports 1 to 8
    MAC address table: 16 K
    Switching capacity: 5.6 Gbps
    Packet forwarding rate: 4,166 Mpps
    Internal cache: 4 Mbits
    PoE power supply
    PoE standard: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
    Ports 2 to 8: IEEE 802.3af, IEEE 802.3at
    PoE power pin: Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
    PoE port: Ports 1 to 8
    Max. port power: Port 1: 60 W
    Ports 2 to 8: 30 W
    PoE power budget: 110 W
    Max. power consumption: 120 W
    General
    Shell: Metal material, fan-free design
    Gross weight: 1.22 kg (2.69 lb)
    Net weight: 0.55 kg (1.21 lb)
    Dimension (L × H × D): 217.6 mm × 27.8 mm × 103.35 mm (8.6" × 1.1" × 4.1")
    Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
    Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
    Operating humidity: 5% to 95% (no condensation)
    Storage humidity: 5% to 95% (no condensation)
    Power supply: 48 VDC, 2.5 A
    Power consumption in idle: 10 W
