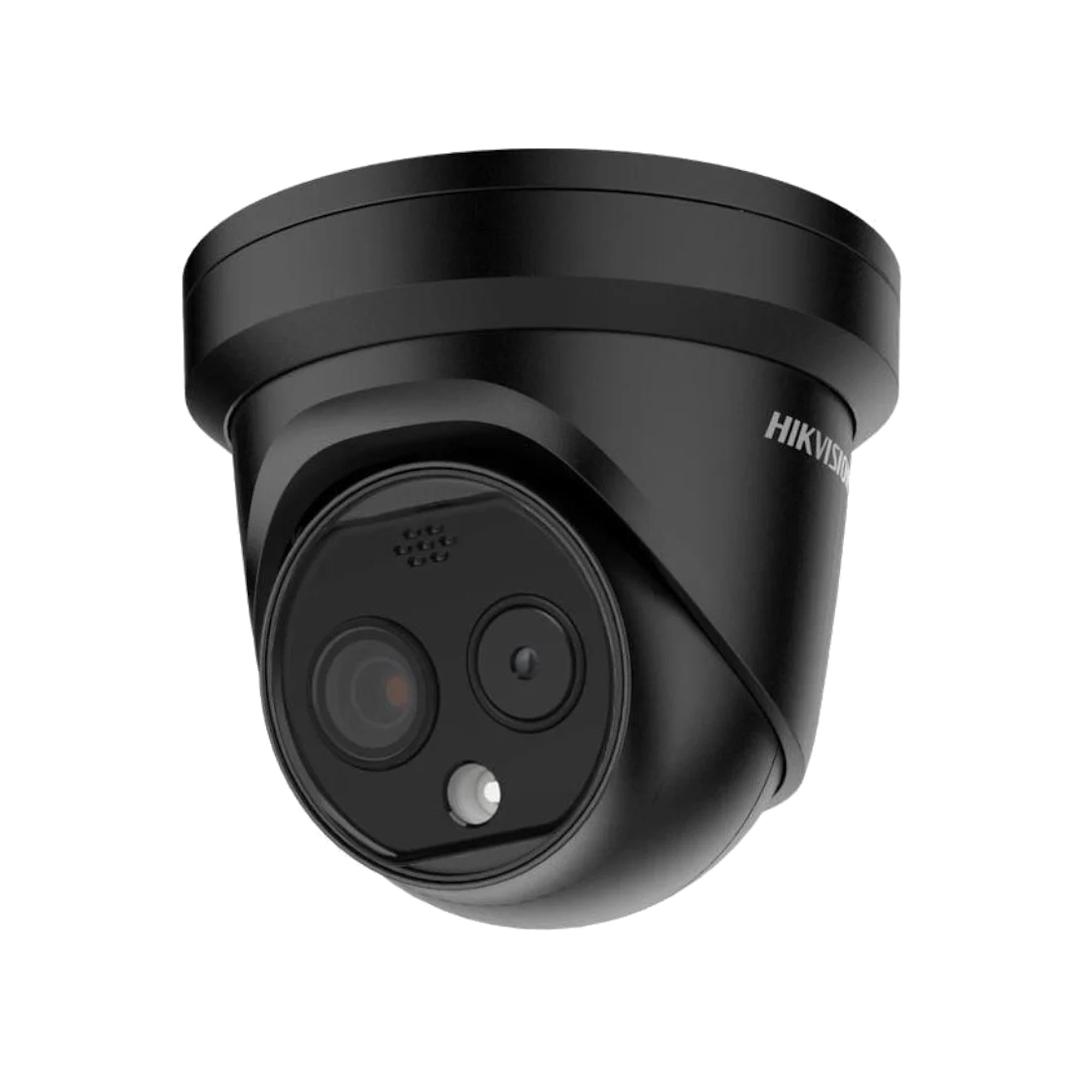

DS-2TD1228-2/QA, Thermal bi-spectrum Dome Camera Black

This Hikvision , thermal bi-spectrum dome camera combines the best of optical and thermal cameras The light-sensitive sensor provides an excellent image. Even in backlight and low-light situations. With a thermal camera, an image is based on differences in temperature. As a result, a thermal camera usually sees more than a regular optical camera. Unlike the regular camera, a thermal camera does not suffer from abnormal light situations such as backlight, low light or IR reflection. This makes the camera ideally suited for various forms of detection.

This series of thermal cameras from Hikvision features DeepinView technology. This technology allows vehicles and people to be distinguished from other objects. This makes the camera ideal for outdoor detection with minimal risk of false alarms. In addition, this camera supports temperature measurements and fire detection algortime.

Specificaties:

Thermische Module

• Imaging sensor Vanadium oxide uncooled focal plane arrays
• Resolution 256 × 192
• Pixel pitch 12 m
• Spectral range 8 m to 14 m
• NETD< 40 mK (25°C, F1.1)
• Brandpuntsafstand2,1 mm
• IFOV5.71 mrad
• Field of view 90.0° × 65.4° (H × V)
• Min. Sharpest distance d0.1 m
• Opening F1.0
• Digital Magnification ×2, ×4

Optische Module

• Imaging Sensor1/2,7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. LightingColour: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter speed1 s to 1/100,000 s
• Brandpuntsafstand2,2 mm
• Field of view117.8° × 70.4° (H × V)
• Diafragma (Bereik)F2.3
• WDR120 dB

Afbeeldingseffect

• Purpose colouringYes. Supported in white hot and black hot mode.

Illuminator

• IR DistanceUp to 15 m
• IR Intensity And AngleAutomatically Adjusted
• Audible And Visual Alarm
• White Light RangeUp to 30 m
• Visual AlarmYes. White Light Alarm with adjustable flashing frequencies

Audio-Alarm

• Yes, for two types of audible alarms (VCA and Temperature Exception)
• 2 preset audible alerts (one for each)
• 6 importable user-defined voice alerts (6 options shared between the two types)

Slimme Functie

• VCA4 VCA rule types (line crossing, intrusion, region input and region output), up to 8 VCA rules in total.
• Temperature measurement3 types of temperature measurement lines, a total of 21 lines (10 points, 10 areas and 1 line)
• Temperature range-20°C to 150°C (-4°F to 302°F)
• Temperatuurnauwkeurigheid:±8°C (±14,4°F)

Video And Audio

• Hoofdstream
• Thermisch:
• 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

Optisch:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Substream
• Thermisch:
• 25 fps (704 × 576, 640 × 512, 320 × 240)

Optisch:

• 50 Hz: 25 fps (704 × 576, 352 × 288)
• 60 Hz: 30 fps (704 × 480, 352 × 240)
• Video Compressie
• Hoofdstream: H.265/H.264
• Substream: H.265/H.264/MJPEG
• AudiocompressieG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Netwerk

• Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP
• Network storage MicroSD/SDHC/SDXC card (up to 256G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK and third-party management platform, Open Network Video Interface (Profile S, Profile G)
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: administrator, operator, user
• Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• CliëntiVMS-4200, Hik-Connect

Webbrowser

• Live view (plug-in allowed): Internet Explorer 11
• Live view (free plug-in allowed): Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0 +

Koppel

• Alarm input:1, alarm input (0-5 VDC)
• Alarm output:1, alarm output (alarm response configurable)
• Alarm actionSD recording/relay output/smart capture/FTP upload/e-mail link

Audio-Ingang

• 1, 3.5mm Mic in/Line-in interface
• Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
• Audio OutputLinear level, impedance: 600
• Communicatie-Interface:
• 1, RJ45 10 M/100 M Self-adaptive Ethernet interface:
• 1, RS-485 interface (half duplex)

Algemeen

• Language Web client32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish,
• Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Stroomvoorziening

• 12 VDC ± 25%, φ 5.5 mm coaxial plug
• PoE (802.3af, class 3)
• Energieverbruik
• 12 VDC ± 25%: 0.5 A, max. 6 W
• PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
• Werktemperatuur/Vochtigheid:
• Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Humidity: 95% or less

Beschermingsniveau

• IP66 standard
• TVS 6000V lightning protection, surge protection, voltage transfer protection
• Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
• 940 g (2.07 lb)
