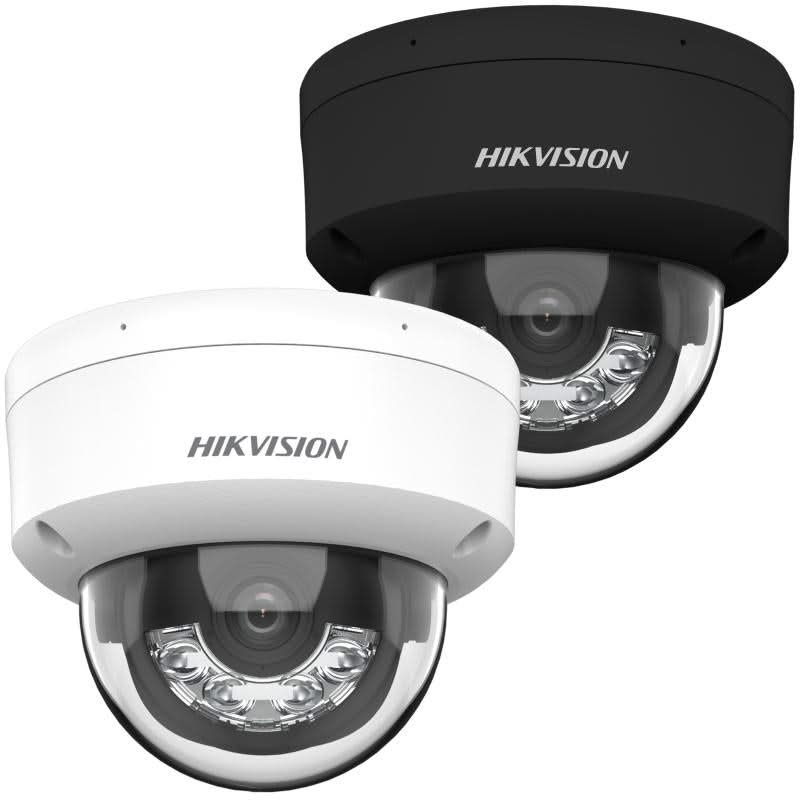

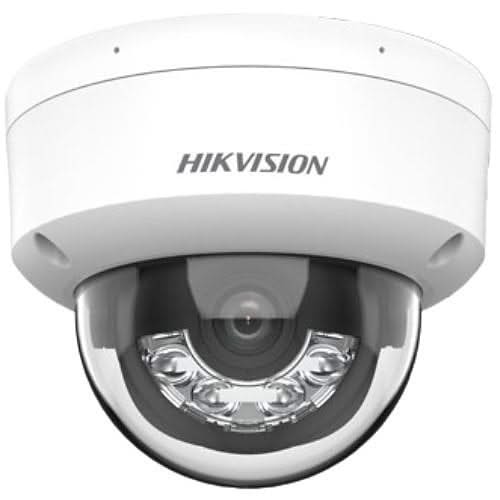

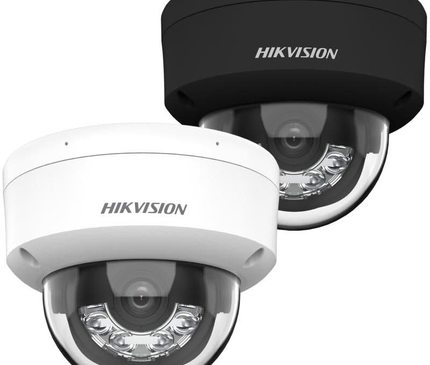

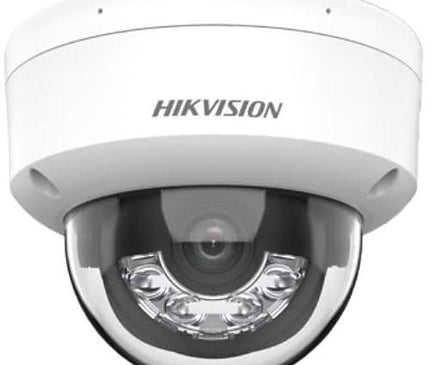

The Hikvision DS-2CD2183G2-LIS2U outdoor IP camera is designed for installation in areas with high traffic of people and vehicles. Its durable aluminium housing makes it resistant to weather conditions and mechanical stress. The camera is certified to IP67 and IK10 protection standards, allowing it to operate effectively in conditions of dust, moisture and sudden temperature changes, and withstand shocks and attempted vandalism.

The camera is equipped with a lens with a fixed focal length of 2.8 mm, providing a wide viewing angle of 104°, allowing you to cover a large observation area. 1/2,9" Progressive Scan CMOS matrix with 8 MP resolution and a recording rate of up to 25 frames. In low light, the camera automatically switches to night mode and built-in IR and LED illumination ensure visibility up to a distance of 30 metres, even in complete darkness with full-colour images!

The model supports modern codecs H.265, H.264, H.265+, H.264+ and MJPEG, allowing you to compress video without quality loss and reduce file size. The camera has a slot for microSD cards up to 512GB. The device connects via a standard RJ45 connector (10M/100M) with PoE support, which greatly simplifies the installation process, as data transmission and power are via a single cable.

DS-2CD2183G2-LIS2U is equipped with a built-in microphone for audio recording and also supports many intelligent functions such as cross-line and zone intrusion. Alarms for detecting people and vehicles are also supported. The camera can be controlled remotely through a web interface using iOS and Android devices, allowing you to control its operation from anywhere in the world.

Specifications:

• Camera

  • Imaging sensor: 1/2,8" Progressive Scan CMOS
  • Maximum Resolution: 3840 × 2160
  • Minimum Exposure: Colour: 0.005 Lux @ (F1.6, AGC ON), Black/White: 0 Lux with light
  • Shutter speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle adjustment: pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°

• Lens

  • Lens Type: Fixed focal length lens, 2.8 and 4 mm optional
  • Focal length & Angle of view
    • 2.8 mm, horizontal angle of view 108°, vertical angle of view 59°, diagonal angle of view 127°
  • Lens mount: M12
  • Iris Type: Fixed iris
  • Aperture: F1.6
  • Depth of field
    • 2.8 mm: 1.7 m to ∞
  • DORI
    • 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

• Verlichting

  • Extra illumination type: IR, White Light
  • Additional illumination range: Up to 30 m
  • Smart extra illumination: Yes
  • IR Wavelength: 850 nm

• Video

  • Mainstream
    • 50 Hz:
      • 20 fps (3840 × 2160)
      • 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz:
      • 20 fps (3840 × 2160)
      • 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Substream
    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • Third stream is supported under certain settings.
  • Video Compression
    • Hoofdstream: H.265/H.264/H.264+/H.265+
    • Substream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • Third stream is supported under certain settings.
  • Video Bitrate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Scalable Video Codec (SVC) H.264 and H.265 encoding
  • Bitrate control: CBR, VBR
  • Region of Interest (ROI): 1 fixed region for main stream and substream
  • Purpose Cropping: Yes

• Audio

  • Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bitrate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sample Frequency -2U: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environmental noise filtering -2U: Yes

• Netwerk

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: up to 6 channels
  • API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP

• Beveiliging

  • Password protection, complex password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Client: iVMS-4200, Hik-Connect, Hik-Central

• Netwerkopslag

  • NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), along with high-end Hikvision memory card, support for memory card encryption and health detection

• Webbrowser

  • Plug-in required for live view: IE 11
  • Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
  • Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Afbeelding

  • Image Parameters Switch: Yes
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable polygon privacy masks

• Interface

  • Ethernet interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-board storage: Integrated memory card slot, supports microSD/microSDHC/microSDXC cards, up to 512GB
  • Alarm -S: 1 input, 1 output (max 12 VDC, 30 mA)
  • Audio
    • Integrated microphone:
      • -2U: Arrayed dual-microphone
      • -S: 1 input (line in), two-wire terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
      • 1 output (line out), two-wire terminal block, max output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Reset button: Yes

• Evenement

  • Basic event: motion detection (supports alarm triggers based on specified target types (human and vehicle)), video damage alarm, exception
  • Coupling: Upload to FTP/NAS/memory card, notify monitoring centre, send e-mail, trigger recording, trigger capture, -S: trigger alarm output
  • Deep Learning capabilities: Perimeter protection, Line crossing, Intrusion, supports alarm triggers based on specified target types (human and vehicle)

• Algemeen

  • Power supply: 12 VDC ± 25%, 0.7 A, max 8.4 W, Ø 5.5 mm coaxial power connector, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max 10 W
  Material: base: aluminium alloy, cover: aluminium alloy
  • Dimensions: Ø 121.5 mm × 97.6 mm (Ø 4.78" × 3.84")
  • Packing dimensions: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
  • Weight: Approximately 600 g (1.3 lb.)
  • Weight with packaging: Approximately 840 g (1.9 lb.)
  • Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Start-up and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
