DHI-ARM7011-W2(868) Wireless relay 7-24VDC

DHI-ARM7011-W2(868) Wireless Relay 7-24VDC Dahua Wireless Relay Frequency hopping and two-way communicaton technology ensure stable communication. Supports interference detection and... Read more

Delivery time 1 - 2 working days

€61,88€51,14 -25% -25%
€46,41€38,36 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Gratis verzending vanaf €99,-
    • Kopen op rekening
    • Gratis retourneren binnen 14 dagen

    check Associated products for DHI-ARM7011-W2(868) Wireless relay 7-24VDC

    Size chart

    DHI-ARM7011-W2(868) Wireless Relay 7-24VDC

    Dahua Wireless Relay Frequency hopping and two-way communicaton technology ensure stable communication. Supports interference detection and communication encryption. Supports cloud update and automatically recovers when cloud update fails. Protection against overheating. Voltage detection. 1 channel external tamper input.

    Specificaties:

    • Port
    • Alarm Input - 1 for tamper, NO/NC
    • Relay Output - 1, NO/NC (0-36 VDC, Max 5A)

      Function
    • Indicator Light - 1 for multiple statuses (pairing, communication)
    • Button - 1
    • Remote Update - Cloud update

      Technical
    • Test Mode - Yes

      Wireless
    • Carrier Frequency - 868.0 MHz-868.6 MHz
    • Communication Mechanism - Two-way
    • Communication Distance - 1200 m (3937.01 ft) in open areas
    • Encryption Mode - AES128
    • Frequency Hopping - Yes

      General
    • Power Supply - 7-24 VDC
    • Operating Temperature --10 °C to +55 °C (+14 °F to +131 °F) (indoor)
    • Operating Humidity - 10%-90% (RH)
    • Storage Temperature - -10 °C to +55 °C (+14 °F to +131 °F)
    • Storage Humidity - 10%-90% (RH)

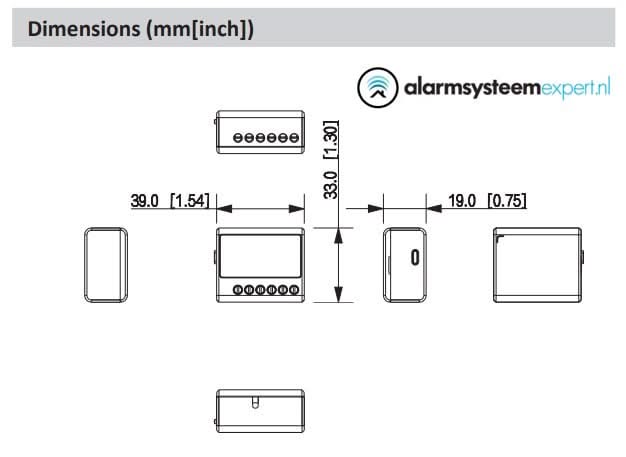

    • Product Dimensions - 39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")
    • Packaging Dimensions - 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")
    • Net Weight - 45 g (0.10 lb)
    • Gross Weight - 60 g (0.13 lb)
    • Installation - Wall mount
    • Casing Material - PC + ABS
    • Certifications - CE
