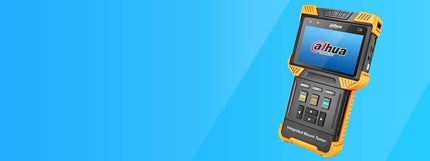

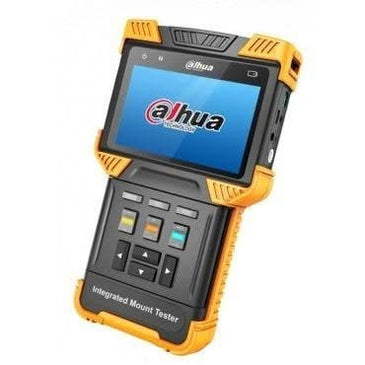

Dahua DH-PFM900-E, Camera test monitor

The Dahua PFM900-E is a multifunctional camera test monitor for all kinds of cameras. The tester can be used as a test monitor for HD-CVI, IP and analogue cameras. In addition, it has various functions to check camera cabling and a network. Basic configuration of Dahua IP cameras and Dahua HD-CVI cameras (via OSD) is also possible.

Test monitor with 4" screen, querty keyboard, tester for Dahua IP, HDCVI and analogue video, RS485, supports PoE to camera and 12Vdc, torch function, UTP cable tester, PoE test, video generator, Auto power off function, chargeable via included Midspan PoE.

Specifications:

Fysieke Poort:

• Network Port:2x10/100/1000 RJ45,
• Function Port: 2xBNC (Video in/out), 1xRS485, 1x Audio in, 1x USB, 1x Reset,

IP Camera Test:

• Protocol: Onvif 2.4.1, RTSP, RTP,
• Ethernet Test: 10/100/1000M Ethernet link test, Loop detection, Ethernet traffic flow monitor, Link quality test,
• IP Configuration: Static IP, DHCP client, DHCP server,
• IP Camera Test: Find camera, Real time Video, Camera configuration, etc.

HDCVI & Analogue Testing:

• Format:NTSC, PAL,
• Resolution: D1, 720p, 1080p,
• Signal Level: 1Vpp,
• Camera Test: Real Time Video, PTZ Control, Audio Test, Full Screen Preview, etc.,
• HDCVI OSD: Camera Configuration,

PTZ Bediening:

• Protocol: More than 30 protocols incl Dahua, Pelco-D/P, Samsung, Panasonic, etc.,
• Baud Rate: 150, 300, 600, 1200, 2400, 1800, 9600, 19200bps,

Detectie:

• TDR Detection: 0~150m net cable detection, resolution 2m,
• PoE Test: PD Test, PSE Test,
• Network Analysis: Sniff, list Subnet, Ping,
• Analogue Video Generator: Generate PAL/NTSC video signal in varied patterns,
• Recording Playback: Supports local playback,

Systeem Specificaties:

• Screen: 4.0" TFT 800xRGBx480(WVGA) resolution, 16.7M colours, backlit,
• PoE Midspan: AC100~230V 50~60Hz, output 48V/15W,
• Battery: dedicated battery, user replaceable, 7.4V lithium-ion polymer battery, 22.2W,
• Power Output: PoE (802.3afat), DC12V/2A
• Time: Charging time 3~4 hours, Operation time 10 hours,

Overige:

• Internal Storage: 8GB Flash,
• LED Lighting: 2x35lm LED lighting,
• Werkingtemperatuur: -10°C~+55°C,
• Dimensions: 190 x 113 x 37mm,
