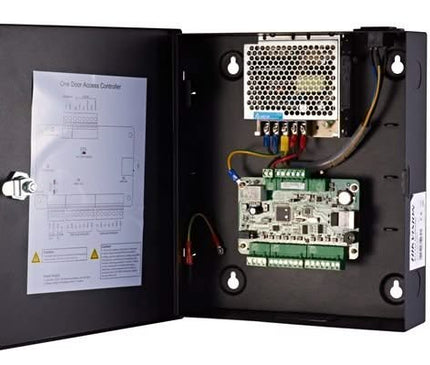

Basic+ door controller, 2 doors, DS-K2802
Hikvision access control combines all disciplines to one VMS, one software package!
In addition to video and intercom, this addition also allows access control. The space choice of door controllers, card readers, fingerprint scanners and other innovation equipment make it a very full-fledged solution.
You can configure groups of users and login credentials, access cards and codes. Hikvision Basic+ series access controller supports cards and codes
The DS-K2800 series access controller is designed with the latest structure with the TCP/IP and RS485 communication interface. The communication data is encrypted to improve system security. The controller also supports offline operation and is designed
with tamper switch.
Presence functions allow you to see how long employees have been in the premises. When you add the hourly rate, the system immediately lets you know what the cost is.
Overtime and absence can also be easily filtered.
You can load a floor plan to easily see where the controller is located and click on the corresponding camera.
Pair cameras with events so that there are video pop-ups with live images and captured footage. You can watch these back right away.
Specificaties:
Koppelbare kaartlezers:
Wiegand readers
Input interface:
4 alarm inputs,
By Magnetic×2
By Switch×2
Case Input×2,
Tamper-proof×1;
Output interface:
By Switch Relay×2
Alarm Relay×2
Uplink Communication Interface:
TCP/IP Network Interface and RS-485 Interface
Memory
10,000 cards and 300,000 events
Door controller information:
- 32-bit high-speed processor
- TCP/IP network communication, with self-adaptive network interface. Communication data is encrypted to ensure data security
- Card number recognition and storage with up to 20 digits
- Storage of 50,000 events
- Supports first card function, super card and super password function.
- Supports alarm event upload (including tamper-resistant alarm, unsecured door alarm, forced entry alarm, delayed door alarm, coercive card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm), Short circuit attempts alarm and open circuit attempts alarm.
- Supports zone alarm input
- Supports Wiegand interface for card reader access. Wiegand interface supports W26 / W34 and is seamlessly compatible with third-
party card reader with Wiegand interface.
- Supports various card types such as normal / blocked / blacklist / patrol / guest / force / super card, etc .;
- Different indicators to show the different device status
- Supports time synchronisation via NTP, manual or automatic method
- Watchdog to perform status detection of the device.
- Data can be permanently stored when the controller is switched off
