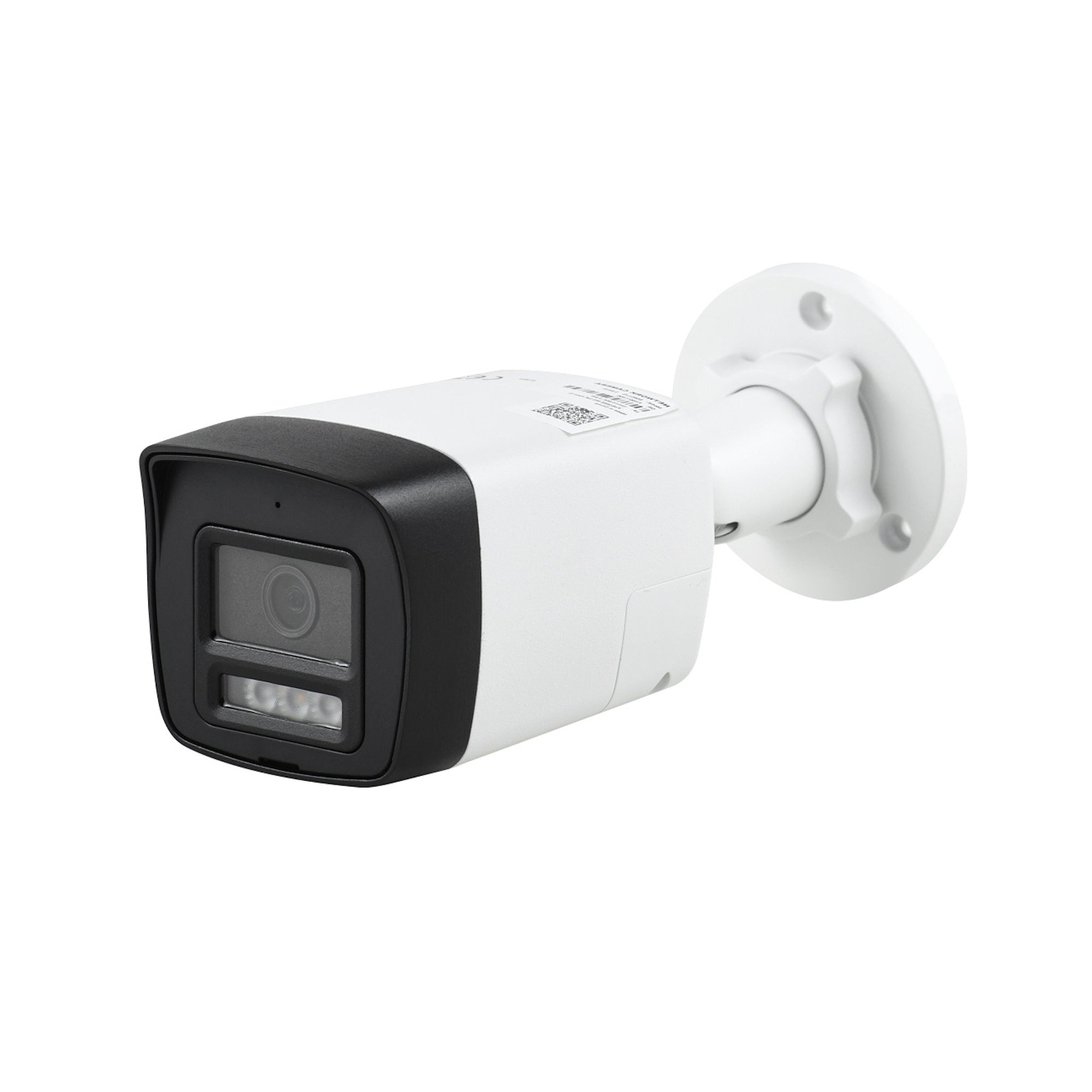

Fantastic Bullet camera with Ultra HD video images with colour night vision. If desired, intruders can be detected and alerted by a flashing light, siren or voice message. (Can also be switched off.)

ASE (alarmsysteemexpert) Ultra HD IP cameras in our house brand camera systems from Hikvision's factory. This is a selection of the very best surveillance cameras in 4K Ultra HD resolution combined with sharp colour night images. These cameras and recorders are assembled by us with the best technology and are fully supported in firmware and updates. Price-wise very interesting and easy to combine plug and play with a PoE (Power over Ethernet) Recorder from our house brand or from Hikvision. Works with Hik-connect.

The ASE B083-L/S is an IP bullet surveillance camera with 8 MP resolution for high-quality images. Thanks to ColorVu technology, it delivers colour images 24/7, even in low light, using intelligent hybrid white light and infrared light up to 30 metres. It also features Smart Hybrid Light technology, which automatically adjusts the light type based on the environment, and AI technology to minimise false alerts by focusing on people and vehicles.

This camera features a 1/2,7" CMOS sensor with progressive scan and offers a wide viewing angle with 2.8 mm fixed lens. The camera also benefits from wide dynamic range (WDR) for clear images even in backlight. H.265+ video compression significantly reduces bandwidth and storage requirements.

For flexible installation, the camera supports PoE (Power over Ethernet) according to the IEEE 802.3af standard, simplifying power supply and network connection. Finally, the robust IP67-certified housing provides effective protection against inclement weather, making the ASE B1083 an ideal security solution for demanding outdoor environments.

Specifications:

• Camera


• Image Sensor :1/2.7" Progressive Scan CMOS
• Max. Resolution :3840 × 2160
• Min. Illumination :Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time :1/3 s to 1/100,000 s
• Day & Night :IR cut filter

• Lens


• Lens Type :Fixed focal lens, 2.8 mm
• Focal Length & FOV :
  - 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

• Lens Mount :M12
• Iris Type :Fixed
• Aperture :F2.0


• DORI

• DORI :
  - 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

• Illuminator


• Supplement Light Type :IR,White Light
• Supplement Light Range :Up to 30 m
• Smart Supplement Light :Yes
• IR Wavelength :850 nm

• Video


• Main Stream :
  - 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  - 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream : - 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
  - 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression :
  - Main stream: H.265+/H.265/H.264+/H.264,
  - Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate :32 Kbps to 16 Mbps
• H.264 Type :Baseline Profile,Main Profile,High Profile
• H.265 Type :Main Profile
• Bit Rate Control :CBR,VBR
• Region of Interest (ROI) :1 fixed region for main stream
• Scalable Video Coding (SVC) :H.264 and H.265 encoding

• Audio


• Audio Type :Mono sound
• Audio Sampling Rate :8 kHz/16 kHz
• Environment Noise Filtering :Yes
• Audio Compression :G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate :64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network


• Security :Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View :Up to 6 channels
• API :Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
• Protocols :TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host : -Up to 32 users 3 user levels: administrator, operator, and user

• Client :iVMS-4200,Hik-Connect
• Web Browser : Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image


• Wide Dynamic Range (WDR) :120 dB
• SNR :≥ 52 dB
• Day/Night Switch :Day,Night,Auto,Schedule
• Image Enhancement :BLC,HLC,3D DNR
• Image Settings :Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask :4 programmable polygon privacy masks

• Interface


• Ethernet Interface :1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone :Yes,1 built-in microphone
• Built-in Speaker :Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
  Reset Key :Yes

• Event


• Basic Event :Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage :Upload to FTP/NAS/memory card,notify surveillance centre,send email,trigger recording,trigger capture,audible warning,flashing light

• General


• Power :
  - 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
  - PoE: IEEE 802.3af, Class 3, max. 9.5 W

• Material :Metal & Plastic
• Dimension :179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
• Package Dimension :216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight :Approx. 285 g (0.6 lb.)
• With Package Weight :Approx. 490 g (1.1 lb.)
• Storage Conditions :-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions :-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
.
• Language :English
