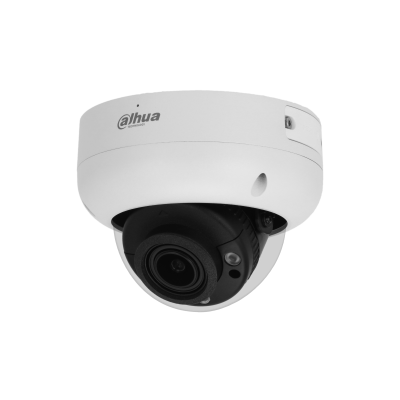

IPC-HDBW5442R-ASE-S3 ePoE 4MP D/N Starlight+ IR, Dome 2.8mm Fixed Lens
The WizMind S Series includes a professional range of intelligent cameras that utilize AI-Powered image enhancement technologies (AI ISP) and feature Deeplight; an upgrade to the existing Starlight technology that now uses an deep learning algorithms for image optimization, allowing the cameras to deliver outstanding images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in various challenging environments.
The cameras in this series offer significantly enhanced audio and video analysis. In doing so, they record appearance features in video metadata, distinguish various sounds through advanced sound detection, feature face detection, enhanced perimeter security with 99% accuracy, improved people counting and more smart features.
Dahua has greatly enhanced Starlight and Starlight+ technology and is taking it to the next level with Deeplight. Cameras with Deeplight use deep learning algorithms to process images, effectively reducing noise and providing better images with higher clarity, even in low-light or nighttime environments.
When both a Dahua switch and a power adapter (DC or AC) are connected at the same time, the IPC can automatically switch to the other power source if one of the sources fails. This ensures continuous operation of the camera and prevents loss of video.
Specifications:
| Number of image sensors: |
1 |
| Optical/Thermal: |
Optical |
| Image Sensor: |
1/1.8 |
| Resolution: |
2688 x 1520 |
| Number of pixels: |
4MP |
| Minimum illumination strength (in color): |
0.0007 Lux |
| Minimum illumination strength (LED on (black/white)): |
0 Lux |
| Illumination: |
IR |
| LED distance: |
up to 50m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
2 LED |
| Shutter speed: |
1/3s ~ 1/100000 s |
| Noise reduction: |
3DNR |
| Lens type: |
Fixed lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.8 mm |
| Maximum aperture: |
F1.6 |
| Horizontal aperture angle: |
112° |
| Vertical aperture angle: |
58° |
| Focus control: |
Auto/Manual |
| Stream capability: |
4 streams |
| Video compression: |
H.264, H.264 +, H.264 B, H.264 H, H.265, H.265 +, MJPEG |
| Images per second (Main Stream): |
25fps @2688 x 1520 /1fps--50/60fps @1920 x 1080 |
| 2nd stream: |
25fps D1: 720 x 576 |
| 3rd stream: |
25fps @1920 x 1080 |
| 4th stream: |
25fps @1280 x 720 |
| Bit rate: |
H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps-8192 Kbps |
| Day/Night: |
Auto (filter), Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(140dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Face Capture/Attributes |
| |
AI People Counting |
| |
AI Perimeter Protection |
| |
AI Motion detection |
| |
AI Video Metadata |
| |
Face Detection |
| |
Object Abbonded/Missing |
| Smart IR: |
Yes |
| Smart LED: |
Auto/Manual |
| Electronic Image Stabilization(EIS): |
No |
| Defog: |
Yes |
| Privacy masking: |
Yes |
| Built-in microphone: |
Yes |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Audio Compression: |
G.711 A, G.711 MU, G.723, G.726, PCM |
| Speaker: |
No |
| Ethernet: |
RJ-45 (10/100 Base-T) |
| Storage option SD card: |
Yes |
| Maximum Storage Capacity SD card: |
512 GB |
| RS-485: |
No |
| Alarm: |
Yes |
| Number of channels in: |
1x 5mA 3V-5VDC |
| Number of channels out: |
1x 300mA 12VDC |
| power supply included: |
No |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Consumption: |
8.8W |
| Operating Temperature: |
-30°C ~ +60°C |
| Water resistance: |
IP67 |
| Vandal resistant: |
IK10 |
| Material |
Metal |
| Diameter |
Ø122mm |
| Height |
94mm |
| Weight: |
0.713 Kg |
