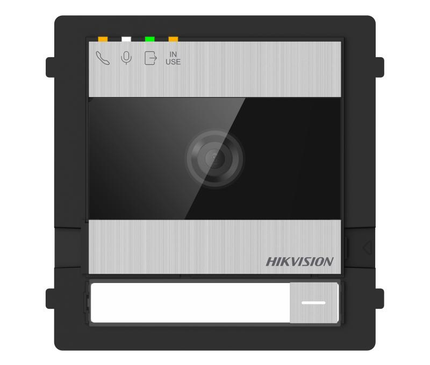

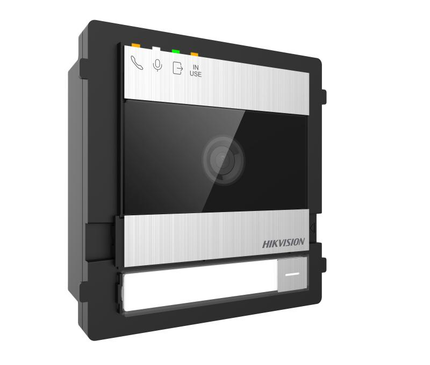

DS-KD7003EY-IME2, 2-Wire Modular intercom, camera module with stainless steel finish.

Enjoy razor-sharp HD images and a wide field of view thanks to WDR technology, giving you a clear view of who is at your door at all times. The door station is compatible with several released submodules, ensuring maximum flexibility when expanding your system.

Configure and manage your door station easily via mobile web configuration in AP mode. With DEC button configuration and plug & play functionality, installation is a breeze. With different indicators for door opening, calls, busy and in use, you will always be kept informed of what is happening.

Easily customise the door station buttons to suit your needs, whether you choose single or dual buttons. Moreover, this system supports control of two locks for added security and convenience.

Specifications:

• Operating system - Embedded Linux operating system
• rom - 4GB
• RAM - 256MB
• CPU - Embedded processor

  Video parameters
• Additional Light - Low illumination, IR supplement lighting
• Video standard - H.264
• Lens - 1
• Field of view - Horizontal: 133°, Vertical: 82°
• WDR - Supported
• Resolution - 2 MP

  Audio parameters
• Audio compression standard - G.711 U, G.711 A
• Audio input - Built-in omnidirectional microphone
• Audio output - Built-in speaker
• Bitspeed audio compression - 64 Kbps
• Sound quality - Noise reduction and echo cancellation
• Volume adjustment - Adjustable

  Capacity
• User capacity - 2000
• Capacity of paired indoor stations - Maximum 99
• Capacity of sub-door station - 16

  Network parameters
• Wired - network 10/100 Mbps self-adaptive via 2-wire interface
• Wifi - AP mode only for configuration

  Device interfaces
• Alarm input - 2 (supports output button or door contact input)
• Tamper - 1
• Exit button - 1
• Door contact input - 1
• RS-485 - 2 (RS485 out for Hikvision's submodule communication, RS485 for reservation)
• DIP switch - 6 decimal DIP switch
• Control interlock - 2 (1 relay, max up to 30 VDC, 2 A; 1 DC pulse, 20 V 4 A impulsive, 300 mA holding current, 30 ohm max)
• Current interface - 48V, driven by distributor DS-KAD7060EY or 12VDC
• Two-wire IP interface - 1

  General
• Button - 0-2 (Flexible adjustment)
• Installation - Surface mount and flush mount
• Indicator - 4 LED lights (door open, ringing, intercom, in use)
• Weight With packaging: 426 g (0.94 lb), without packaging: 290 g (0.64 lb)
• Protective level - IP65 IK08
• Operating temperature - -40° C to 60° C (-22° F to 140° F)
• Working humidity - 10% to 90%
• Dimensions - 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88″ × 1.37″)
• Power supply - 48V, powered by distributor DS-KAD7060EY or 12VDC
• Application environment - Outdoor
• Energy consumption - ≤ 6 W
