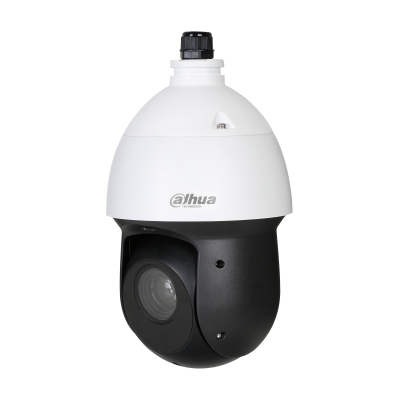

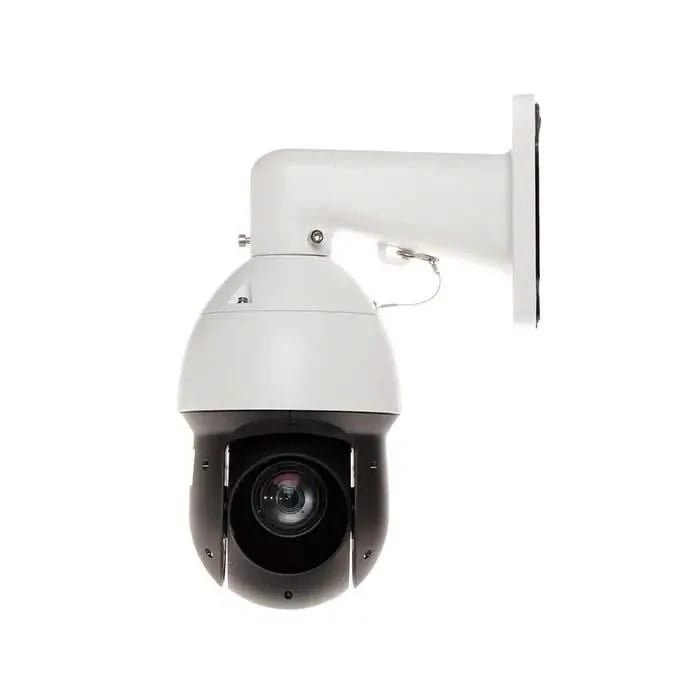

With its powerful optical zoom and precise pan and tilt capabilities, the HDCVI PTZ camera series offers an all-in-one solution for large-scale surveillance. It uses the latest Starlight technology, allowing it to produce detailed images even in low-light conditions. These cameras offer smooth operation and high-quality protection, meeting video surveillance requirements in small and medium-sized environments.

Features
Starlight technology
With advanced image processing and optical technology, Dahua's Starlight technology can deliver bright, colourful video in low-light environments. It is widely used in low-light environments.

3DNR
Dahua's 3DNR technology reduces image noise with little to no effect on image sharpness, especially in poor lighting conditions. It detects noise and compares successive frames to effectively reduce noise. It also makes efficient use of bandwidth, saving storage space.

Long-Range Transmission
HDCVI technology provides real-time transmission over long distances without transmission loss. It supports transmission distances of up to 300 metres for 2MP HD videos via coaxial cables and up to 200 metres via UT.

Specifications:

Camera
- Image sensor: 1/2.8" CMOS
- Resolution: 2 MP
- Max. Resolution: 1920 (H) × 1080 (V)
- ROM: 128 MB
- RAM: 256 MB
- Electronic Shutter Speed: 1/3 s-1/30,000 s
- Scan System: Progressive
- Min. Illumination:

• 0.005 lux@F1.6 (Colour, 30 IRE)
• 0.0005 lux@F1.6 (Black/White, 30 IRE)
• 0 lux (IR illumination)
  - Illumination distance: 100 m (328.08 ft) (IR)
  - Illumination control: Zoom Prio; manual
  - Number of Illuminators: 6 (IR)

Lens
- Focal length: 4.8 mm-120 mm
- Max. Aperture: F1.6–F3.5
• Gezichtsveld:

• H: 60.6°-3.2°
• V: 34.1°-1.8°
• D: 69.4°-3.7°
  - Optical Zoom: 25×
  - Focus control: Auto; semi-auto; manual
  - Min. Focus distance: 0.1 m-2 m (0.33 ft-6.56 ft)
  - Iris control: Auto; manual
  - DORI Distance:
• Detect: 1655.2 m (5430.45 ft)
• Observe: 653.8 m (2145.01 ft)
• Recognise: 331.0 m (1085.96 ft)
• Identify: 165.5 m (542.98 ft)

PTZ
- Pan/Tilt Range:

• Pan: 0° to 360° endless
• Tilt: -15° to +90°, auto flip 180°
  - Manual Control Speed:
• Pan: 0.1°-200°/s
• Tilt: 0.1°-120°/s
  - Preset Speed:
• Pan: 240°/s
• Tilt: 200°/s
  - Presets: 300
  - Rev: 8 (up to 32 presets per tour)
  - Patterns: 5
  - Scan: 5
  - Memory after Power Off: Yes
  - Idle Motion: Patterns; Preset; Scan; Tour
  - PTZ Protocol: DH-SD
  - Pelco-P/D (Auto recognition)

Video
- Resolution: 1080p (1920×1080); 720p (1280×720); D1 (704×576/704×480)
- Video Frame Rate:

• 1080p (25/30 fps)
• 720p (25/30/50/60 fps)
  - Day/Night: Yes
  - BLC: Yes
  - WDR: 120dB
  - HLC: Yes
  - White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
  - Gain Control: Auto; manual
  - Noise reduction: 2D NR; 3D NR
  - Defog: Electronic
  - Digital Zoom: 16×
  - Image rotation: 180°
  - Privacy Masking: Yes
  - S/N Ratio: ≥50 dB

Features
- CVI Product Output Mode: TVI; CVI; CVBS; AHD (CVBS for debugging only)

Certificering
• Certificeringen:

• CE: EN55032/EN55024/EN50130-4
• FCC: Part15 subpart B, ANSI C63.4-2014
• UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Ports
- Analogue Output: 1 channel (CVBS/CVI output, BNC)
- RS-485: 1 (baud rate range: 1200 bps-9600 bps)
- Audio Input: 1 channel (LINE IN, unwired wire)
- Alarm Input: 2 (on/off value input: 0-5 VDC)
- Alarm Output: 1
- Alarm Link: Scan; preset; tour; pattern; alarm digital output
- Alarm Event: Alarm input

Power supply
- Supply voltage: 12 VDC, 3 A ± 10%
- Power:

• Base: 10 W
• Maximum: 22 W (PTZ + lighting + heating)

Environment
- Operating temperature: -40 °C to +70 °C (-40 °F to +158 °F)
- Operating humidity: ≤95%
- Protection: IP66; TVS 6000V lightning-resistant; surge protection; voltage spike protection

Structure
- Product dimensions: 269.9 mm × Φ160.0 mm (10.63"× Φ6.30")
- Net weight: 3.0 kg (6.61 lb)
- Gross weight: 4.2 kg (9.26 lb)
