Round camera mast with tilt anchor 3 metres

Camera mast with tilt anchor diameter 70 mm, 3 meters This camera mast is 3 meters (available up to 5... Read more

1 - 5 working days

€831,61€687,28 -12% -12%
€731,29€604,37 Incl. VATExcl. VAT

Colour: Standard white RAL 9010 Colour: Standard white RAL 9010 Colour: Standard aluminum anodised Colour: Standard black RAL 9005 Color: RAL color of your choice

    • American Express
    • Apple Pay
    • BLIK
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    check Associated products for Round camera mast with tilt anchor 3 metres

    Size chart

    Camera mast with tilt anchor diameter 70 mm, 3 meters

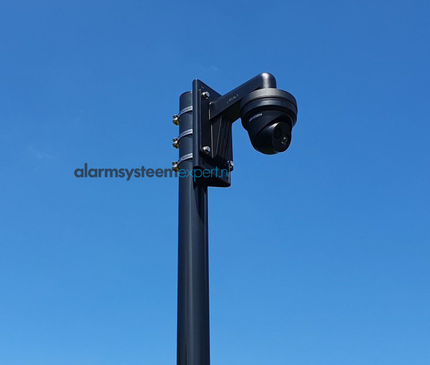

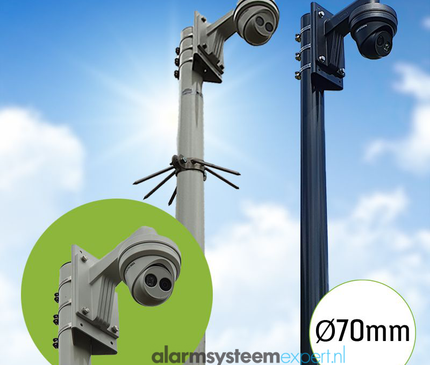

    This camera mast is 3 meters (available up to 5 meters). It is standard equipped with a tilt anchor. In the base plate of the tilt anchor is a hole with a diameter of 50 mm, here you can pull the cables through. The mast is hollow, so you pull the cables through the mast. On top of the mast is a black striker cap that seals the mast. Your installer can drill a hole in the mast at the desired height where the cable comes out and attach the camera to the mast. You pour the tilt anchor into (quick) concrete in the ground.

    Because each type of camera system has its own mounting brackets, we do not offer mounting brackets with this mast. Your installer or camera supplier will be able to supply the right suspension brackets for your cameras!

    Price includes delivery in the Netherlands. We do not deliver to the Wadden Islands. For deliveries outside the Netherlands please contact us. This product is custom made for you and cannot be returned.

    Type camera mast
    Material Extruded profile made of aluminum with the alloy AIMgSi 0.7 with a hardness of F27 according to DIN standard 1748. Without impurities and without transverse and longitudinal seams.
    Model mast cylindrical
    Diameter mast 70 mm
    Wall thickness 3 millimeter
    Length mast 3 meters above ground

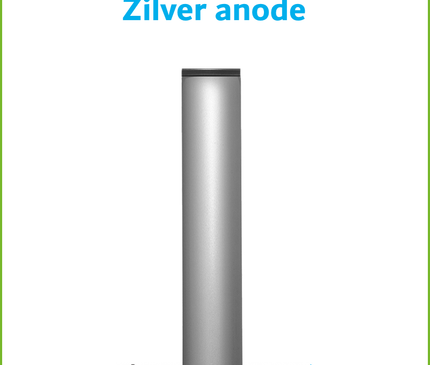

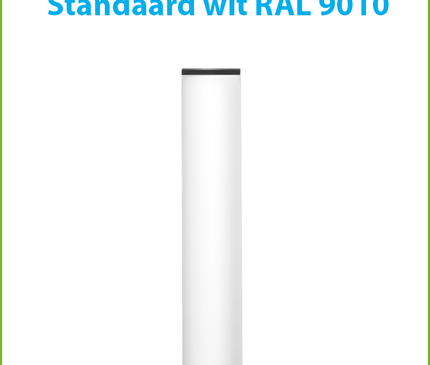

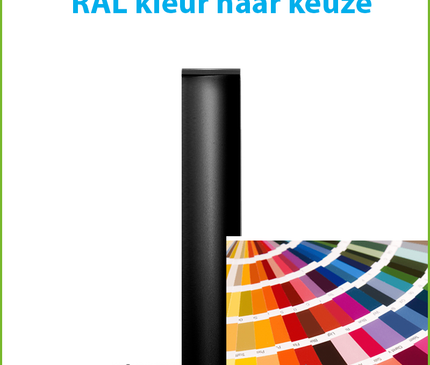

    Color options white RAL 9010 powder-coated , clear ("silver") anodized , black RAL 9005 (satin), RAL color of your choice in powder coating (satin), please note that for the poles in RAL color (RAL 9010, RAL 9005 or RAL color of your choice), the pole profile is sprayed in color, the ground mount remains standard.
    Ground mount Standard with adjustable ground anchor.
    Delivery time Camera poles in stock! Standard colors: Delivery time 3-7 working days, RAL color of your choice: + 15 working days. Self installation is not difficult, this is easy with the included manual.

    Warranty 10 year warranty on mast breakage on the mast profile (calamities excluded, see our general conditions)
    Certifications alloy: DIN Standard 1748 = AIMgSi 0.7; EN Standard = AW-6005A, hardness: DIN Standard 1748 = F27
    Environment mast profile made of 95% recycled material and 100% reclycable, mast profile Cradle to Cradle Certificate Silver
    Weight 3 meter = 5.5 kilo, 3.5 meter = 6.5 kilo

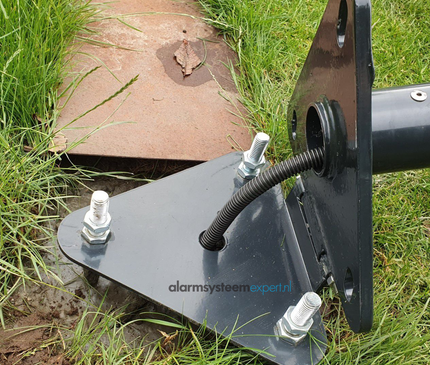

    Specifications tilt anchor threaded studs M16, center to center distance 200 mm, in the foot plate is a hole Ø 50mm through which the cables can be pulled, length of the sides of the foot plate: 27 cm
    Specifications T-piece The T-piece is optionally available in white RAL 9010 and black RAL 9005. On both sides and on top is a striker cap (white/black). The T-piece is supplied separately and can be slid over the pole. There are 2 adjustment bolts on it, with these you clamp it onto the mast.
    Exclusive cameras, cables, camera mounting and accessories. This product is purely the mast with ground mount.

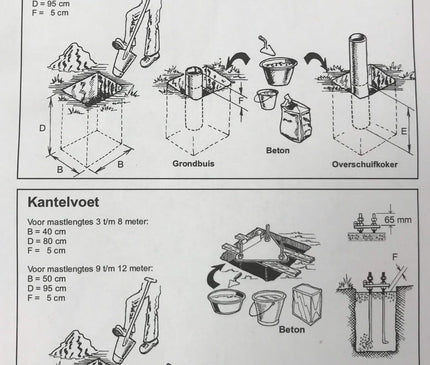

    Concrete Not included. Due to health and safety regulations, this must be transported on a pallet/unloaded with a forklift truck. These costs are higher than the cost of concrete. You can get quick setting concrete/ turbo concrete at any hardware store. The installation instruction states how much you need.
    Further Information These poles come complete with tilt anchor (threaded rods, nuts, everything is included).
