JA-80X

Service note for JA-80X

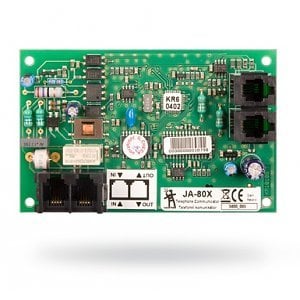

1 Installation

- The communicator can be connected to digital PBXs via a four-cord RJ cable. This uses connectors marked as RS Line on the communicator. Both RS Line connectors have parallel wrings, so they can also be used to split the PBX for digital buses.
- Connect the communicator to the telephone line via the cable supplied with the package. Use a socket marked line on the communicator.
- Additional telephone devices (telephone, fax, modem, etc.) can be connected using the connector marked "Tel".
- When the PBX is in normal standby mode, the telephone line and all connected devices will return to normal operation.
- The communicator can only be connected to an analogue telephone line and should not be connected to a dual or cooperative extension line.

Note: The communicator must be plugged directly into an analogue telephone line socket. All other devices must be connected to the communicator output marked TEL.

2 Alarm voice reporting

Depending on the nature of the events, the communicator is capable of broadcasting 5 assigned alarm reports to up to 4 pre-programmed telephone numbers.
- With the control panel being in the off state, enter Service mode by keying * 0 SC (SC = service code, 8080 by factory default) on the control panel.
- Key programming in the requested sequence(s). Each sequence can be currently recorded and can be escaped by pressing #.
- Completion of a sequence item is confirmed by a beep. After completing all requested sequences, exit Service mode by pressing the #.
- Depending on the system configuration, telephone numbers can be recorded in Business mode.

2.1 Programming phone numbers for voice reporting sequence 71 Mxxx...xx*0

To programme phone numbers used for voice reporting enter: 71Mxx... xx *0

When:
M is the phone number memory from 1 to 4
xx...xx is the desired phone number (max 16 digits)

Special codes can be entered using:
Code : * key *7
# key *8
3 s pause by pressing *6

Example: Press 712 483 123 456 *0 stores the number 483 123 456 in memory 2.

Deleting a number from memory M is done by pressing: 71M*0

When:
M is memory from 1 to 4

Voice reports are sent to pre-programmed phone numbers in the order in which they are stored. A single report to a given phone number starts with the number being called. A 6 sec waiting period follows. After this period, voicemail message No 1 plays (alarm system identification), followed by an event description message. This is repeated 4 times after which the communicator hangs up. Normally, voice control reporting stops only after all numbers have been reported. You can stop reporting by alarm cancellation or by pressing the # key on the phone currently being called. If enabled, reporting prior to ARC is done with a phone voice report.

Note: Do not programme emergency numbers!
All phone numbers are erased when factory settings are reset.

2.2 Limited event reporting sequence 792x

The communicator has a special option for the 2nd telephone number. That only burglary or robbery alarms are reported that the number of other types of events such as fire, intrusion or sabotage are not reported. During the call on the first telephone number, the user can decide whether the alarm report should also be sent to the other telephone numbers or whether it can be terminated by pressing # on the telephone keypad. (e.g. in case of false alarm). To programme this function enter: 792x

Where:
x=0 only intrusion or panic alarms are reported to the 2nd phone number
x=1 all events are reported to all phone numbers

The default setting is 7921
This setting does not apply to transmissions to the ARC, which are made for voicemail messageem.

2.3 Record voice message

You can record voice memo messages via any telephone with DTMF tone. The first step is to dial the communicator's phone number. During the dial-up period, 72 will appear on the keypad. The communicator will respond to the invitation indicated by a beep. Press a key 0 to 8 on the phone, then which of the following actions you want to perform:

0 - Replay all messages
1 - Record message no. 1 (Alarm reports) - identify your alarm system (your company)
2 - Record message no. 2 (Intrusion)
3 - Record message no. 3 (Fire)
4 - Record message no. 4 (Sabotage)
5 - Record message no. 5 (Panic)
6 - Record message no. 6 (Fault)
7 - Record message no. 7 (Welcome to OASiS) - greetings
8 - Record message no. 8 (Enter your access code)

Pressing a key invokes a timer with a beep indication. You will hear five beeps in total with the last beep. After this beep, recording begins - you can record a message by speaking into the phone's microphone. The message duration is limited to 9 seconds for message #1 and 3 seconds for any of the other messages. After being recorded, the message is immediately replayed. A finished message is indicated by two beeps. Repeating all messages (0) can be terminated by pressing *. Recording of a message can be terminated by pressing # or by hanging up.

Voice mail recording is terminated after hanging up.

Note:
- You can also remotely record or change voice messages via a telephone in a call at the exchange. This requires control of the PBX and is entered in Service mode (using the phone's keypad, enter 72x as described above).
- You can change recorded messages at any time using the above procedure. Messages are stored in non-volatile memory, so the JA-80X will not forget them, when the power supply is disconnected.

3 ARC reporting

Contact ID (CID) protocol is used for communication with alarm receiving centres (ARC). If at least one telephone number is preprogrammed for ARC reporting, then the communicator must send a report on each event detected by the centre. (As requested for ARC reporting). Events are reported in the same order as they are discovered. A report successfully transferred creates a report to ARC. Event reports are stored in the switchboard's memory. If the transfer to ARC1 is not successful, the communicator starts the transfer to ARC2, depending on whether a second story line is pre-programmed. If the transfer to ARC2 also fails, another report is sent to ARC1 by the communicator and this is repeated four times. Rejected transfer results as "Report not sent to ARC" after eight (four) attempts. Then a standard voice message is sent to the phone numbers as per the event and settings. After that, there are two more attempts (cycles) that deliver the message to the ARC after 5 minutes and after 10 minutes. An undelivered report is stored in memory and reported along with the next report - if possible.

Note: Contact ID protocol ensures that all relevant events are reported automatically. An idea of format of the data is provided in the table below.

3.1 ARC phone number sequence 75 Mxxx...xx*0

To programme phone numbers from the requested ARC enter: 75Mxx....x*0

Where:
M is the ARC memory index: 1=major, 2=backup
xx..x is the ARC phone number (max.16 digits)

deleting a number from memory M: 75M*0

3.2 Installation (alarm system) ID to be used for ARC sequence 76 Mx..x*0

The installation ID number to send an ARC with each report can be programmed with: 76x..x*0

Where:
xx.x is the installation ID number that identifies your company
If a hexadecimal form is required for the ID specification, it uses digits preceded by "*" for alphabetic characters: *1 = A to *6 = F. Example: The sequence 7615*1*5*0 will give the hexadecimal program ID 15AE.

3.3 Filter reported side effects

Reported events can be filtered according to their type. To activate/deactivate reporting events of a particular type (or group of types) enter: 73nx

Where:
n is a group of types of events
1 - All events
2 - Alarm triggering events
3 - Alarm cancellations
4 - Enable/disable events
5 - Faults
6 - Maintenance events
7 - Regular periodic reports

x is the enable/disable attribute
1 - Report
0 - No report

the default settings are 7311.

3.4 ARC report structure

A report of an ARC sent with CID protocol consists of:
Installation ID (building identification), event code, subsystem number and the number of the source (device or code).

Codes 01 - 50

Subsystem: 01 in all reports
In a split system, for on and off: 02 = A, 03 = B
For partial: 02 = A, 03 = AB

3.5 ARC communication test sequence 74

To perform the test enter: 74
After a successful transfer, the keys are displayed as "test ok". A failed transfer is indicated by displaying "test error". Periodic reports (group no. 7) are sent within 24 hours of an event being reported.

3.6 Using the JA-80X and the JA80Y in combination

The JA-80X can be used in combination with a GSM-JA-80Y communicator. The communicators can either work in parallel or the JA-80X can function as a backup device to the JA-80Y. Any unsuccessful attempt by the JA-80Y of events via the GSM report, is followed by JA-80X voice telephone exchange reporting. GSM report errors are indicated by a message "No ARC sent report" events in the control panel memory. Uses a line spacing with messages to the JA-80X installable above the JA-80Y in the control panel.

Note:
- This option requires the JA-80Y to be pre-programmed by instruction 081.
- Using two communicators in combination may reduce the performance of the internal antennas. If this is a problem, you can use some of Jablotron's external antennas designed for OASiS systems.

3.7 ARC reporting mode sequence 791x

To programme the reporting mode enter: 791x

Where:
x = 0 no ARC reporting from the JA-80X
x = 1 the JA-80X operates as a backup device for ARC1 reporting
x = 2 the JA-80X operates as a backup device for ARC2 reporting
x = 3 the JA-80X reports unconditionally (this does require the installation ID and at least one phone number must be pre-programmed)

The default setting is 7910.
After a JA-80X backup report (x = 1 or 2), the JA-80Y will soon make the report to restore GSM communication.

3.8 Telephone line check sequence 793x

If this function is enabled, the communicator will check the readiness of the telephone line. If the line is not ready, this causes problems on the control panel and in the control panel. A report is then written in memory as "External communication error".
For programming the function: 793x

Where:
x = 0 control disabled
x = 1 control enabled

The default setting is 7930 (does not comply with EN 50131-1!)

3.9 Sensitivity to signals sequence 794x

This setting allows you to set a higher sensitivity for the line signal. This can help in cases where the quality or level of the signal is low.

794x

Where:
x-0 fundamental sensitivity (default)
x-1 higher sensitivity

3.10 Occupied - Line detection sequence 795x

If this feature is enabled, the communicator will check the busy tone of each phone number. If the line is busy it hangs up and the communicator tries the other numbers. The attempt is repeated in a standard way (eight / four attempts for communication to the ARC, four attempts for voice messages).

795x

With:
x-0 detection is disabled (default)
x-1 detection is enabled

4 Remote access via a telephone line

The JA-80X communicator allows remote control of the system via a telephone line by temporarily having authorisation over the telephone keypad. After a call request is received, the communicator will wait for a pre-programmed ringer period and then answer the call. Then, message No. 8 will be replayed (Enter your access code). Then, the communicator will wait for 60 seconds for a Service, User or MASTER code to be entered.
If an incorrect code is entered, the communicator responds with message No. 8 and waits for a correct code to be entered. If an incorrect code is entered for the second time, the communicator responds with 4 beeps and hangs up.
A correct code is answered by the system with indication:
1 beep - Enabled
2 beeps - Disabled
3 beeps - Service mode
1 long beep + 3 short beeps - Alarm state
Then the communicator plays message No 7 "Welcome to OASiS". The system can then be operated via the keys on the phone, in the same way as via the control panel.
1 beep - Enabled
2 beeps - Disabled
3 beeps - Entering Service mode
4 beeps - Fault
Telephone calls are automatically terminated after 60 seconds of inactivity.

4.1 Call period sequence 77n

To programme the call period after which the communicator will ring, key to answer: 77n

Where:
n is a number from 0 to 9 with the following meanings:
n = 1 to 8 the communicator will answer after 5 seconds of ringing
n = 9 answer after a second call - first there must be a ring, then a pause (5 to 40sec.) and then just after the first ring of the second call, the call will be answered.
n = 0 the communicator will never answer

5 Communicator RESET sequence 78080

To reset the communicator to the factory default settings enter: 78080

Note: Performing a RESET does not affect voicemail message recordings.
