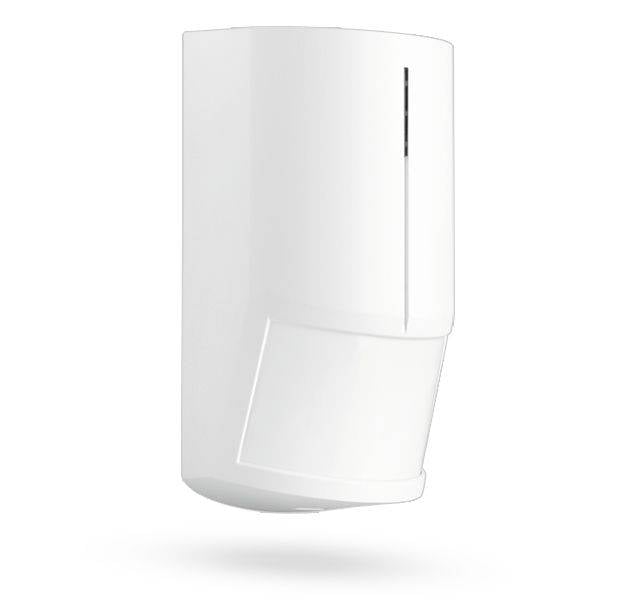

JA-80P

Service explanation for JA-80P

1 Installation

The installation of Oasis components is reserved only for and distributor-certified installers. The detector can be placed on a flat wall or in a corner of a room. Avoid objects that can rapidly change temperature, such as electronic heaters, gas installations, etc., placed in detection areas. Moving objects approaching human temperature such as curtains placed above or behind a radiator should be avoided, as well as pets. Do not place detectors facing the lens in direct sunlight or spotlights and avoid fans or drafty areas. Make sure that the detector has a clear view into the protected area. Keep the detector away from metal objects that can negatively influence the radio signal and communication.

Open the detector housingby pressing tab. Avoid touching the electronics and or damaging the antenna.
1. Remove the circuit boardwhich is clamped with an internal tab. Push the screw holes through the artificial eye housing. At least one screw should be placed through the tamper (tamper) sensitive section
2. Screw the bottom plate to the wall, about 2 metres above the floor ( vertical with the tab underneath) Place the circuit board back in its original place.
a.Do not connect the batteries yet and leave the housing open. Now follow the instructions of the control panel or the receiver module. The basic read-in procedure is as follows:
b. Enter read-in mode on the control panel by keying in the digit 1 in service mode.
c. Insert and activate the batteries in the detector, causing the detector to read itself into the system. Exit read-in mode by pressing "#".
To read-in a detector already activated by a battery; deactivate the detector's batteries, and press the tamper switch to discharge the board. After discharging, the detector will be ready to be read in again after 1 minute. After the batteries are reactivated, the detector LED will remain lit for 1 minute.

2 DIP switches

NORM / HIGH: select thesensitivity of false alarms . The NORM position, combines a very good immunity time i.c.w. a fast sensor response. The HIGH positive gives a lesser sensitivity to false alarms i.c.w. a slower reaction time of the sensor, this setting is used in problematic in stallations
Warning: Most false alarms are caused by bad positioning / projection of the detector.
INS / DEL: DEL gives an IN / OUT loop delay at the entrance of objects. INS gives the detector an instant alarm activation when the system is on. This DIP switch (INS/DEL) gives a natural response only if the detector, as an Oasis alarm detector is read in. It also gives none if the detector is read in on a UC-8x or AC-8x receiver.

3 Testing the detector

15 minutes after the detector is locked with its housing, the detector LED gives a light signal and a notification to the control panel each time it is activated by motion.The notification to the control panel is audible in service mode. The strength of the signal can be read on the code control panel.

4 5 minutes/1 minute battery saving mode

To conserve batteries, the detector will go into battery saver mode after 15 minutes after closing the housing. The detector will remain alert to detect after these 15 minutes. After the first motion detection, it will be transmitted to the control panel, and for the following 5 minutes, the detector will ignore any movement. After these 5 minutes, the detector will automatically start detecting again and when detected will immediately report to the control panel. THE time of the economy mode can be shortened to 1 minute by pressing and holding the tamper switch when activating the batteries. Not pressing this tamper switch gives 5 minutes of economy mode.

5 Changing batteries

The detector allows itself to be informed what the status of the battery voltage is. If the battery voltage is too low, a message will be given to the control panel to notify a user or installer. During low battery voltage, the detector will light its LED every time it moves. The batteries must have been replaced in service mode by a certified technician within two weeks when "low battery voltage" is reported.
After the batteries are replaced, the detector takes 60 sec to stabilise. After the batteries are replaced, the detector's LED will light up on motion to test the detector. Take batteries to the appropriate regular disposal sites and do not throw them in the bin.

6 Removing the detector from the system

When a detector is removed, it will be noticed by the system, and ere and notified to the owner and or control room. Before deleting a detector, it must first be unprogrammed from the system.

7 Detection characteristics

The standard lens has a detection range of 120° over a distance of twelve metres. The protected area is detected by three layers (beams) as shown in the figure below.

The characteristics can be changed with optional lenses.

Note: Nada toe lens is replaced, test this lens competently, if not installed correctly, this lens will not meet the expectation.

8 Auxiliary alarm input

There is an input contact in the detector which , which interconnects other items e.g. detects opening of a door or window.Opening a door has the same effect as detecting movement. The maximum length of cabling is 3 mtr.bridge this input when not in use.
